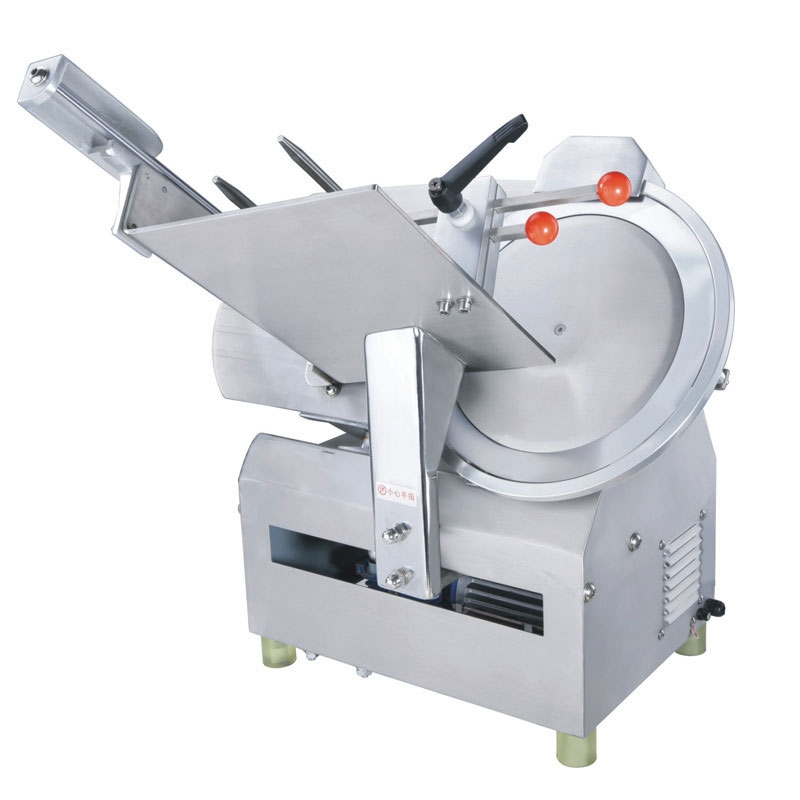

The Newin 320KTS is a 13-inch fully automatic meat slicer designed for commercial meat preparation and high-volume slicing work. It uses a 320mm Italian imported blade and a dual-motor configuration with separate motors for blade rotation and material feeding.
The machine provides an adjustable slicing thickness of 0–12mm and a slicing speed of up to 50 slices per minute. Its cutting area accommodates round mutton pieces up to 2 × Ø120mm and rectangular products up to 220 × 135mm.
With a rated input power of 550W + 950W, a 68kg net weight and a machine size of 670 × 655 × 645mm, the 320KTS is suited to commercial kitchens, butcher shops, supermarket meat counters and food-processing applications where automatic slicing is preferred.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 320KTS |
| Machine Type | Fully Automatic Meat Slicer |
| Blade Diameter | 320mm / 13 inch |
| Slicing Speed | 50 slices/min |
| Slicing Thickness | 0–12mm adjustable |
| Mutton Cutting Size | 2 × Ø120mm |
| Rectangular Cutting Size | 220 × 135mm |
| Walking Motor Power | 950W |
| Blade Motor Power | 550W |
| Rated Input Power | 550W + 950W |
| Rated Voltage | 220–240V |
| Rated Frequency | 50Hz |
| Net Weight | 68kg |
| Machine Dimensions | 670 × 655 × 645mm |
| Package Dimensions | 750 × 750 × 750mm |
| Waterproof Rating | IPX1 |
320mm / 13-Inch Italian Imported Blade
The 320KTS uses a 320mm blade, giving the machine a larger cutting diameter than smaller commercial slicer models. The blade is specified as an Italian imported blade and is designed for regular commercial slicing work.
The cutting area supports mutton pieces up to 2 × Ø120mm and rectangular products up to 220 × 135mm, subject to the actual shape and condition of the product being processed.
Fully Automatic Slicing Operation
The 320KTS is designed for fully automatic slicing. The feeding movement and blade operation are driven by separate motors, allowing the machine to carry out the slicing process without requiring the operator to manually move the product through each cut.
With a stated slicing speed of 50 slices per minute, the machine is intended for commercial applications where consistent automatic feeding and slicing are more suitable than manual or semi-automatic operation.
Dual-Motor Configuration
The 320KTS uses two separate motors for the main operating functions:
- 950W walking motor: drives the material feeding movement.
- 550W blade motor: drives the 320mm slicing blade.
This dual-motor configuration separates the feeding and blade-driving functions within the machine. The total rated input power is 550W + 950W.
Adjustable 0–12mm Slicing Thickness
The slicing thickness can be adjusted from 0 to 12mm according to the required product specification.
This adjustment allows the same machine to be used for different commercial slicing applications, from thinner deli-style slices to thicker meat portions. The appropriate setting should be selected according to the meat type, product dimensions and required finished slice.
Frozen Mutton Slicing Capability
The 320KTS can be used for mutton slicing when the product condition is suitable for the machine. The supplied product information specifies that meat above -10°C does not require thawing before slicing.
Actual cutting performance can vary depending on the meat condition, temperature, shape and size. For frozen or partially frozen products, operators should select the appropriate product condition and slicing setting before production.
Continuous Operation
The supplied product information specifies a continuous operating time of approximately 3–4 hours. For commercial production, the actual operating cycle should follow the supplied operating instructions and the working conditions of the machine.
Regular cleaning and inspection are recommended during daily use, particularly when processing meat products that leave residue around the cutting and feeding areas.
Suitable Applications
The 320KTS can be considered for commercial meat-processing environments where automatic slicing and a 320mm blade are appropriate.
- Butcher shops and meat counters
- Supermarket meat departments
- Delis and commercial food counters
- Restaurants and hotel kitchens
- Hot pot and prepared-meat operations
- Catering and central kitchens
- Food-processing and meat-preparation facilities
- Commercial mutton and meat slicing applications
Choosing the 320KTS for Your Application
The 320KTS is a suitable option when the application requires a fully automatic meat slicer with a 320mm blade and adjustable 0–12mm slicing thickness.
For buyers comparing different slicer sizes, the blade diameter, automatic or semi-automatic operation, product dimensions and available working space should be considered together.
The 320KTS has a 320mm blade, 68kg net weight and 670 × 655 × 645mm machine dimensions. It therefore represents a larger automatic slicing configuration than compact or smaller semi-automatic models.
For applications that require a smaller machine or semi-automatic operation, a smaller commercial meat slicer may be more appropriate. For applications specifically focused on frozen meat, a dedicated frozen meat slicer can also be considered.
Installation and Power Supply
The 320KTS is rated for 220–240V, 50Hz power supply. Before ordering, buyers should confirm that the machine’s electrical specification is compatible with the installation location.
The machine measures 670 × 655 × 645mm, so sufficient working and maintenance space should be allowed around the equipment. The package dimensions are 750 × 750 × 750mm for shipping and handling reference.
The waterproof rating is IPX1. This rating should not be interpreted as approval for high-pressure washing or direct water-jet cleaning. Cleaning procedures should follow the supplied operating and maintenance instructions.
🛠️ Maintenance Tips
- Clean meat residue from the cutting and feeding areas after each use.
- Clean and dry the blade and other accessible cutting components after cleaning.
- Check the blade condition regularly and maintain or replace the cutting components when necessary.
- Keep the machine surface and surrounding working area clean after operation.
- Follow the supplied operating and maintenance instructions for lubrication, inspection and component replacement.
Frequently Asked Technical Questions
Q: What size blade does the 320KTS use?
A: The 320KTS uses a 320mm (13-inch) Italian imported blade.
Q: Is the 320KTS fully automatic?
A: Yes. The 320KTS is designed as a fully automatic meat slicer, with separate motors for material feeding and blade operation.
Q: What is the slicing speed of the 320KTS?
A: The specified slicing speed is 50 slices per minute.
Q: What slicing thickness can be selected?
A: The slicing thickness is adjustable from 0 to 12mm.
Q: Can the 320KTS slice frozen mutton?
A: The supplied product information states that meat above -10°C does not require thawing before slicing. Actual suitability depends on the product condition, temperature, size and shape.
Q: What are the motor powers of the 320KTS?
A: The machine uses a 950W walking motor and a 550W blade motor, with a total rated input power of 550W + 950W.
Q: What are the dimensions and weight of the 320KTS?
A: The machine dimensions are 670 × 655 × 645mm and the net weight is 68kg. The package dimensions are 750 × 750 × 750mm.
Q: What power supply does the 320KTS require?
A: The specified power supply is 220–240V, 50Hz. Buyers should confirm the electrical specification before ordering.
Related Commercial Meat Slicers
Newin offers different meat slicer configurations for commercial meat preparation. Buyers can compare blade diameter, operating method and application requirements before selecting a model.
- Commercial meat slicers – for the main product category and model selection.
- 12-inch fully automatic meat slicer – a smaller automatic configuration compared with the 320KTS.
- 14-inch commercial automatic meat slicer – a larger automatic slicer option.
- 13-inch frozen meat slicer – for applications specifically focused on frozen meat slicing.
Request a Quote
If you are looking for a 13-inch fully automatic meat slicer for commercial meat preparation, the Newin 320KTS can be evaluated based on your meat type, product dimensions, required slicing thickness, daily production requirements and local power supply.
When requesting a quotation, please provide the target product, required slice thickness, approximate processing volume and power supply available at your facility. This information helps confirm whether the 320KTS is suitable for your application.
