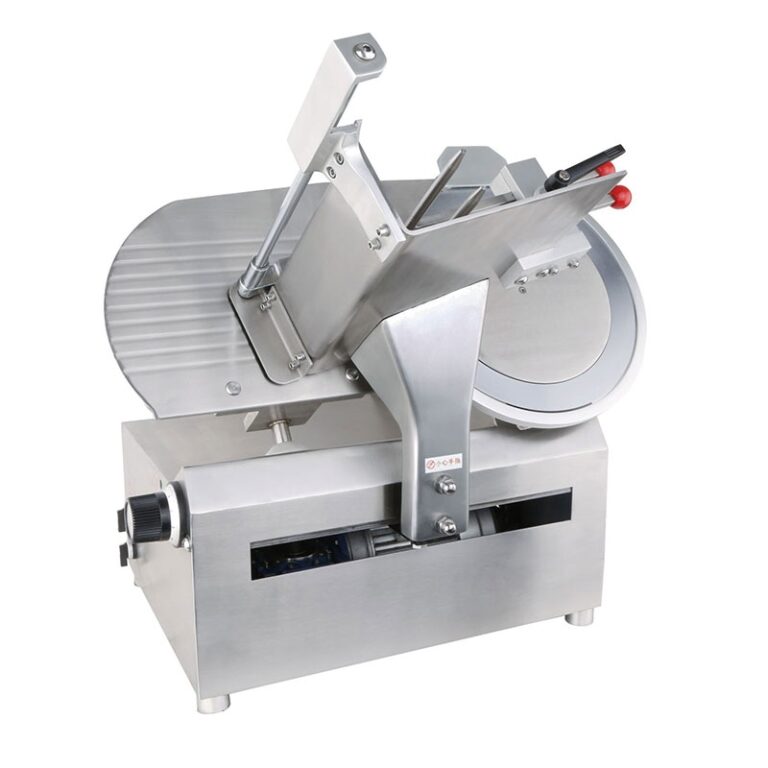

The Newin 360KTS is a 14-inch commercial fully automatic meat slicer designed for professional meat preparation. It uses a 360mm slicing blade and a dual-motor configuration with a rated input power of 450W + 1150W.
The 360KTS features a full stainless steel body, adjustable slicing thickness and a large 255mm cutting stroke. It is equipped with an Italian imported blade and is designed for continuous operation of approximately 3–4 hours according to the manufacturer’s product specifications.
The machine has a specified mutton cutting size of 2 × Ø120mm and a rectangular cutting size of 255 × 150mm. With a net weight of 92kg, the 360KTS is designed for commercial kitchens, meat counters, hot pot restaurants, catering operations and other businesses that require a larger automatic meat slicing format.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 360KTS |
| Machine Type | 14-Inch Commercial Fully Automatic Meat Slicer |
| Blade Diameter | 360mm / 14 inch |
| Mutton Cutting Size | 2 × Ø120mm |
| Rectangular Cutting Size | 255 × 150mm |
| Rated Input Power | 450W + 1150W |
| Motor Configuration | Dual Motor |
| Rated Voltage | 220–240V |
| Rated Frequency | 50Hz |
| Net Weight | 92kg |
| Machine Dimensions | 760 × 685 × 720mm |
| Package Dimensions | 800 × 800 × 850mm |
| Waterproof Rating | IPX1 |
360mm / 14-Inch Italian Imported Blade
The 360KTS uses a 360mm diameter slicing blade, providing a 14-inch slicing format for commercial meat preparation. The product specification identifies the blade as an Italian imported blade.
The 360mm blade format is suitable for businesses that need a larger commercial meat slicer for regular meat preparation. The specified mutton cutting size is 2 × Ø120mm, while the rectangular cutting size is 255 × 150mm.
Operators should select and handle the blade according to the manufacturer’s operating instructions and follow appropriate procedures when cleaning or maintaining the cutting components.
Fully Automatic Commercial Design
The 360KTS is designed as a fully automatic commercial meat slicer. Its automatic operating configuration is intended for businesses that need a powered meat slicing process for regular commercial preparation.
The machine can be considered for applications where operators need a larger 14-inch slicing format and a defined automatic operating process. The actual suitability depends on the type, size and condition of the meat products being processed.
Dual-Motor Configuration
The 360KTS uses a dual-motor configuration with a rated input power of 450W + 1150W.
The two motor ratings are an important specification for commercial buyers evaluating the machine’s electrical requirements and comparing it with other automatic meat slicers.
The rated voltage is 220–240V at 50Hz. Confirm the available electrical supply at the installation site before ordering.
255mm Cutting Stroke
The 360KTS is specified with a 255mm cutting stroke. This large cutting stroke is one of the machine’s main structural features and is relevant when evaluating the working range required for a commercial meat slicing application.
The specified rectangular cutting size is 255 × 150mm. Buyers should compare this dimension with the size and shape of the meat products used in their operation before selecting the machine.
Adjustable Slicing Thickness
The 360KTS features adjustable slicing thickness, allowing operators to select the required slice thickness according to the meat product and preparation requirements.
The appropriate thickness setting should be selected according to the characteristics of the meat being processed and the operating instructions supplied with the machine.
Frozen Meat Slicing Without Thawing Above -10°C
The manufacturer’s product specification states that meat above -10°C does not require thawing before slicing. This feature is intended for frozen meat preparation where maintaining the required product condition before slicing is important.
Actual slicing performance depends on the type, size, temperature and condition of the meat. Buyers should confirm the suitability of their specific frozen meat products before ordering.
One-Year Oil-Free Feature
The 360KTS is specified with a one-year oil-free feature. This is one of the product’s stated design characteristics and can be considered when comparing maintenance requirements between different commercial meat slicers.
Routine cleaning, inspection and component maintenance are still required. Operators should follow the manufacturer’s maintenance instructions for the machine and its moving components.
3–4 Hours Continuous Operation
The product specification states that the 360KTS can operate continuously for approximately 3–4 hours. This makes the machine suitable for commercial operations that require extended slicing sessions during food preparation.
The actual operating schedule should follow the manufacturer’s operating instructions and take into account the type and condition of the meat being processed.
Full Stainless Steel Body
The 360KTS features a full stainless steel body for commercial food preparation environments. Stainless steel provides a practical machine surface for routine cleaning and maintenance around the meat preparation area.
Operators should remove meat residue from accessible surfaces and the cutting area after use, then clean and dry the machine according to the supplied operating and maintenance instructions.
Suitable Applications
The Newin 360KTS can be considered for a range of commercial meat preparation applications, including:
- Hot pot restaurants and kitchens
- Butcher shops and meat counters
- Supermarket meat departments
- Restaurant and hotel kitchens
- Catering and central kitchens
- Commercial beef and mutton preparation
- Frozen meat preparation operations
The appropriate application depends on the type and dimensions of the meat products, required slicing format, operating conditions and available electrical supply.
Choosing the 360KTS for Your Application
The 360KTS is a suitable model to consider when a business needs a 14-inch commercial fully automatic meat slicer with a 360mm blade, dual motors and a large 255mm cutting stroke.
When comparing commercial meat slicers, buyers should consider blade diameter, machine type, cutting size, motor configuration, machine dimensions and electrical requirements.
For a 14-inch semi-automatic configuration, the 360T 14-inch semi-automatic commercial meat slicer is another model to compare.
For a 14-inch floor-type automatic frozen meat slicer, the 360KA 14-inch floor type automatic frozen meat slicer provides a different machine configuration.
For a 14-inch vertical automatic frozen meat slicer, the 360KB 14-inch vertical automatic frozen meat slicer is another model in the same 360mm blade series.
Installation and Power Supply
Before installation, place the 360KTS on a stable and suitable working surface with enough surrounding space for operation, cleaning and routine maintenance.
The machine is rated for 220–240V at 50Hz, with a rated input power of 450W + 1150W. Confirm that the electrical supply at the installation site matches the machine specification before operation.
The machine dimensions are 760 × 685 × 720mm. Check the available installation space and access route before ordering, particularly when the machine will be installed in a commercial kitchen or meat preparation area.
The package dimensions are 800 × 800 × 850mm and can be used as a reference when planning transportation, receiving and installation.
🛠️ Maintenance Tips
- Clean meat residue from the cutting area after each use.
- Clean and dry the cutting components after washing.
- Check the knife condition regularly and maintain or replace the cutting components when necessary.
- Keep the machine surface and working area clean after operation.
- Follow the supplied operating and maintenance instructions for lubrication and component replacement.
Frequently Asked Technical Questions
Q: What size blade does the Newin 360KTS use?
A: The 360KTS uses a 360mm (14-inch) slicing blade.
Q: Is the 360KTS a fully automatic meat slicer?
A: Yes. The 360KTS is a 14-inch commercial fully automatic meat slicer designed for commercial meat preparation.
Q: What is the motor configuration of the 360KTS?
A: The 360KTS uses a dual-motor configuration with a rated input power of 450W + 1150W.
Q: What is the mutton cutting size of the 360KTS?
A: The specified mutton cutting size is 2 × Ø120mm.
Q: What is the rectangular cutting size of the 360KTS?
A: The specified rectangular cutting size is 255 × 150mm.
Q: What is the cutting stroke of the 360KTS?
A: The 360KTS has a specified cutting stroke of 255mm.
Q: Can frozen meat be sliced without thawing?
A: According to the product specification, meat above -10°C does not require thawing before slicing. The suitability of a specific meat product depends on its type, size and condition.
Q: How long can the 360KTS operate continuously?
A: The product specification states that the 360KTS can operate continuously for approximately 3–4 hours. Actual operation should follow the manufacturer’s instructions.
Q: What power supply does the 360KTS require?
A: The specified power supply is 220–240V at 50Hz. The rated input power is 450W + 1150W.
Q: What are the dimensions and weight of the 360KTS?
A: The machine dimensions are 760 × 685 × 720mm and the net weight is 92kg. The package dimensions are 800 × 800 × 850mm.
Q: Does the 360KTS have an oil-free feature?
A: Yes. The product specification states a one-year oil-free feature. Routine cleaning and maintenance should still be carried out according to the manufacturer’s instructions.
Q: What is the waterproof rating of the 360KTS?
A: The specified waterproof rating is IPX1. This rating should not be interpreted as permission to pressure-wash or fully immerse the machine.
Related Commercial Meat Slicers
Newin offers commercial meat slicers with different blade sizes and operating configurations. The following models can be compared with the 360KTS according to application and machine format:
- Commercial meat slicers – browse the Newin meat slicer range.
- 360T 14-inch semi-automatic commercial meat slicer – a 360mm semi-automatic model.
- 360KA 14-inch floor type automatic frozen meat slicer – a different 360mm automatic configuration.
- 360KB 14-inch vertical automatic frozen meat slicer – a vertical 360mm automatic model.
Request a Quote
If you are looking for a 14-inch commercial fully automatic meat slicer, the Newin 360KTS can be evaluated according to your meat type, product dimensions, required cutting format and electrical supply.
For wholesale, distributor or commercial equipment inquiries, please provide the required quantity, destination country, voltage requirements and intended application when requesting a quotation. This information helps confirm the appropriate machine configuration and shipping requirements.
