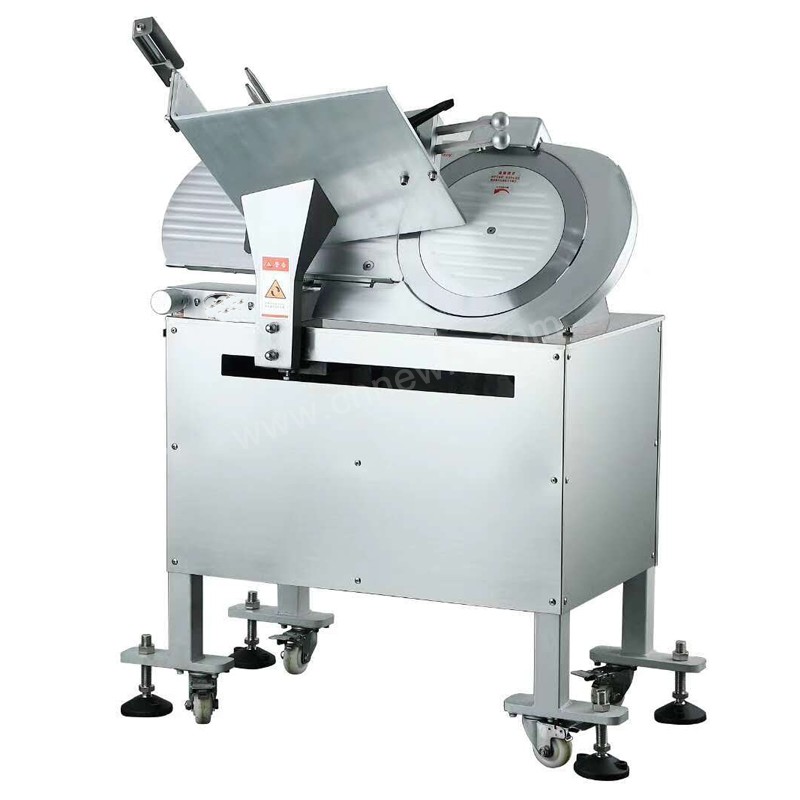

The Newin 360KB is a 14-inch vertical automatic frozen meat slicer designed for commercial meat preparation, butcher shops, hot pot kitchens, supermarkets and food processing applications. It uses a 360mm slicing blade, a vertical floor-type structure and a dual-motor drive system for automatic slicing operation.
The 360KB supports adjustable slicing thickness from 0–18mm and a specified slicing speed of 32–50 slices per minute. The machine is designed for larger frozen meat rolls, with a specified mutton cutting size of 3 × Ø100mm and a rectangular cutting size of 330 × 170mm.
One of the key features of the 360KB is its frozen-meat working capability. The product design specifies operation without a separate thawing step, helping users process frozen meat directly according to the required working conditions. The machine is also designed with an oil-free maintenance feature, with the product information specifying one year without adding oil under normal use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 360KB |
| Machine Type | 14-Inch Vertical Automatic Frozen Meat Slicer |
| Blade Diameter | 360mm / 14 inch |
| Slicing Speed | 32–50 slices/min |
| Slicing Thickness | 0–18mm adjustable |
| Mutton Cutting Size | 3 × Ø100mm |
| Rectangular Cutting Size | 330 × 170mm |
| Walking Motor Power | 1150W |
| Blade Motor Power | 450W |
| Rated Input Power | 450W + 1150W |
| Rated Voltage | 380V |
| Rated Frequency | 50Hz |
| Net Weight | 170kg |
| Machine Dimensions | 590 × 560 × 735mm |
| Package Dimensions | 800 × 800 × 850mm |
| Waterproof Rating | IPX1 |
360mm / 14-Inch Slicing Blade
The 360KB uses a 360mm diameter slicing blade, giving the machine a 14-inch cutting configuration for larger commercial meat slicing applications.
The larger blade format is suitable for operations that work with larger meat rolls and require a vertical automatic slicer rather than a compact tabletop machine.
The product information also specifies an Italian imported blade as one of the machine’s features.
Vertical Floor-Type Machine Design
The 360KB uses a vertical floor-type structure rather than a tabletop layout. With a net weight of 170kg and overall dimensions of 590 × 560 × 735mm, it is intended to be installed as a dedicated commercial meat-processing machine.
The vertical configuration is particularly useful for buyers who are comparing larger automatic slicers for commercial kitchens, butcher shops, hot pot preparation areas and food-processing facilities.
Automatic Frozen Meat Slicing
The 360KB is designed for automatic slicing of frozen meat. Its operating configuration combines the feeding movement with the rotating blade, allowing the machine to perform repeated slicing cycles with less manual handling than a semi-automatic slicer.
A key product feature is its ability to work with frozen meat without a separate thawing step. This allows the machine to be considered for applications where frozen meat rolls need to move directly into the slicing process.
The actual cutting result depends on the condition, size and hardness of the frozen meat, so product testing is recommended when processing a new type of meat or a different frozen condition.
One-Year Oil-Free Maintenance Feature
The 360KB is designed with an oil-free maintenance feature. The product information specifies that the machine can operate for one year without adding oil under normal use.
This feature reduces the need for routine oil-adding work during normal machine operation. It does not mean that the machine requires no maintenance at all. Cleaning, blade inspection and regular checks of the machine components should still be carried out according to the supplied operating and maintenance instructions.
Adjustable 0–18mm Slicing Thickness
The 360KB provides an adjustable slicing thickness from 0 to 18mm. Operators can adjust the slicing setting according to the required meat product and preparation method.
The available thickness range makes the machine suitable for applications requiring different slice formats, from thinner meat slices for hot pot preparation to thicker commercial meat portions.
Dual-Motor Configuration
The 360KB uses two motors for its main operating systems. The walking motor is rated at 1150W, while the blade motor is rated at 450W.
The total rated input power is 450W + 1150W. The separate motor configuration supports the machine’s automatic feeding and slicing operation.
This dual-motor arrangement is one of the main technical differences between the 360KB and simpler single-motor commercial meat slicers.
Two-Speed Operation
The product information specifies two-speed operation for the 360KB. This allows the machine to be operated at different working speeds according to the slicing requirement.
The specified slicing speed is 32–50 slices per minute. Actual output can vary depending on the meat size, frozen condition, slicing thickness and operating setup.
255mm Cutting Stroke
The 360KB is specified with a large cutting stroke of 255mm. This is one of the machine’s important structural features for processing larger meat products.
The cutting stroke should be considered together with the specified mutton cutting size of 3 × Ø100mm and rectangular cutting size of 330 × 170mm when evaluating the machine for a particular application.
Cutting Size
The specified mutton cutting size for the 360KB is 3 × Ø100mm. The specified rectangular cutting size is 330 × 170mm.
These dimensions provide useful reference points when checking whether the machine is suitable for the size and shape of the meat products used in your operation.
For unusually large, irregular or specially prepared meat products, confirm the actual product dimensions and working conditions before ordering.
Suitable Applications
The Newin 360KB can be considered for commercial frozen meat slicing applications such as:
- Butcher shops and commercial meat counters
- Hot pot restaurants and hot pot food preparation
- Supermarket meat departments
- Central kitchens
- Commercial catering kitchens
- Frozen meat distributors
- Meat processing and food preparation facilities
- Commercial kitchens requiring automatic frozen meat slicing
The machine is particularly relevant where frozen meat needs to be sliced without a separate thawing step and where a larger 14-inch vertical automatic slicer is preferred.
Choosing the 360KB for Your Application
The 360KB is a suitable option for buyers looking for a 14-inch vertical automatic frozen meat slicer with a 360mm blade, adjustable 0–18mm slicing thickness and dual-motor operation.
When selecting a commercial frozen meat slicer, consider the diameter and shape of the meat rolls, required slice thickness, frozen condition, electrical supply, available installation space and required level of automation.
The 360KB is positioned toward larger vertical automatic slicing applications. Buyers who need a smaller blade size or a different machine configuration can compare it with other models in the Newin range.
View the complete range of commercial meat slicers to compare different blade sizes and machine configurations.
Installation and Power Supply
The 360KB is rated for 380V and 50Hz power supply. Confirm the electrical supply at the installation site before ordering and installation.
The machine dimensions are 590 × 560 × 735mm and the net weight is 170kg. Sufficient space should be reserved around the machine for operation, cleaning and routine inspection.
The package dimensions are 800 × 800 × 850mm. Buyers should also consider delivery access, lifting equipment and installation conditions when planning for this machine.
🛠️ Maintenance Tips
- Clean meat residue from the cutting area after each use.
- Clean and dry the cutting components after washing.
- Check the knife condition regularly and maintain or replace the cutting components when necessary.
- Keep the machine surface and working area clean after operation.
- The 360KB is designed with an oil-free maintenance feature; follow the supplied maintenance instructions before adding any lubricant.
- Follow the supplied operating and maintenance instructions for inspection and component replacement.
Frequently Asked Technical Questions
Q: What size blade does the 360KB frozen meat slicer use?
A: The 360KB uses a 360mm diameter slicing blade, equivalent to a 14-inch blade.
Q: Can the 360KB slice frozen meat without thawing?
A: Yes. A key feature of the 360KB is its ability to process frozen meat without a separate thawing step. The actual result depends on the type, size and frozen condition of the meat.
Q: Does the 360KB require regular oil adding?
A: The product information specifies a one-year oil-free maintenance feature under normal use. Cleaning and routine inspection are still required, and maintenance should follow the supplied instructions.
Q: What slicing thickness can the 360KB provide?
A: The specified slicing thickness range is 0–18mm and can be adjusted according to the required slicing format.
Q: What is the slicing speed of the 360KB?
A: The specified slicing speed is 32–50 slices per minute. Actual output depends on the meat size, frozen condition, slicing thickness and operating conditions.
Q: What motors are used in the 360KB?
A: The 360KB uses a 1150W walking motor and a 450W blade motor. The rated input power is 450W + 1150W.
Q: What power supply does the 360KB require?
A: The specified power supply is 380V, 50Hz. Buyers should confirm the available electrical supply before ordering.
Q: What is the cutting size of the 360KB?
A: The specified mutton cutting size is 3 × Ø100mm, and the specified rectangular cutting size is 330 × 170mm.
Q: How large and heavy is the 360KB?
A: The machine dimensions are 590 × 560 × 735mm and the net weight is 170kg. The package dimensions are 800 × 800 × 850mm.
