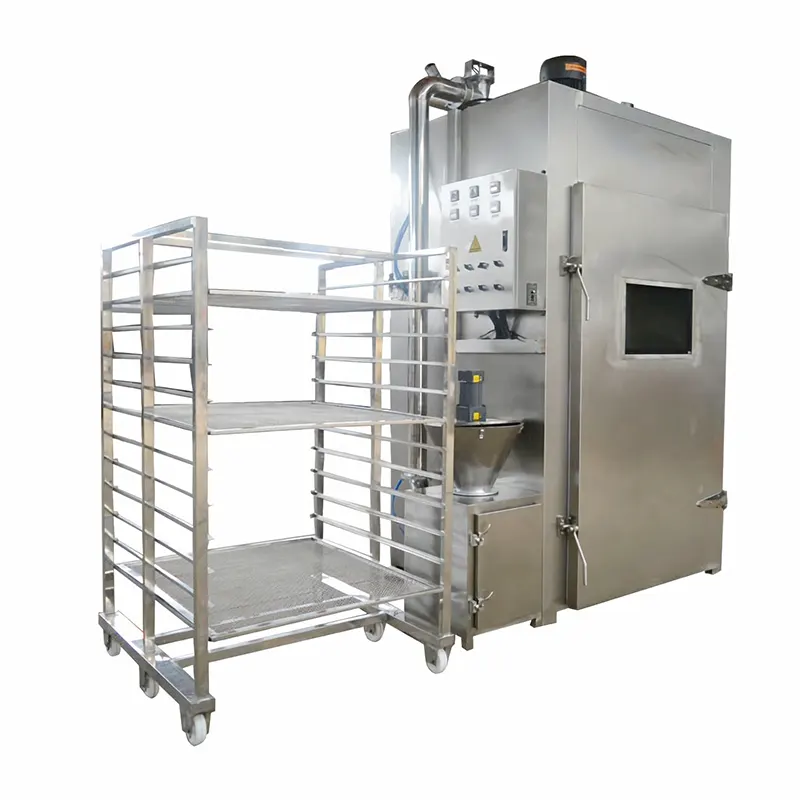

The Newin NWYX-250 is a 250kg commercial smokehouse designed for batch processing of meat, sausage, poultry and other suitable food products. The machine uses a 304 stainless steel structure and supports smoking, drying and cooking processes in the same chamber.
The NWYX-250 is available with two heating configurations: steam heating and electric heating. Both configurations use the same NWYX-250 model and have a production capacity of 250kg per batch. The main difference is the heating system and its related utility requirements.
The steam heating version has a total heating power of 7.68kW and requires a suitable steam supply. The electric heating version has a total heating power of 27.25kW and does not require a steam supply. The appropriate configuration can be selected according to the utilities available at the installation site.
Technical Specifications
| Parameter | NWYX-250 Steam Heating | NWYX-250 Electric Heating |
|---|---|---|
| Model | NWYX-250 | NWYX-250 |
| Production Capacity | 250 kg/batch | 250 kg/batch |
| Total Heating Power | 7.68 kW | 27.25 kW |
| High-Pressure Steam | 0.4–0.6 MPa | / |
| Low-Pressure Steam | ≤0.1 MPa | / |
| Chamber Temperature | ≤110°C | ≤150°C |
| Standard Hanging Trolley | 1013 × 1060 × 1700 mm | 1013 × 1060 × 1700 mm |
| Machine Dimensions | 1450 × 1930 × 3100 mm | 1450 × 1930 × 3100 mm |
| Weight | 1200 kg | 1200 kg |
250kg Batch Processing Capacity
The NWYX-250 has a production capacity of 250kg per batch. This capacity is the same for both the steam heating and electric heating configurations.
The batch design is suitable for commercial food processing operations that need a dedicated chamber for smoking, drying or cooking rather than a small countertop or cabinet-type machine.
Two Heating Options for NWYX-250
The NWYX-250 is one machine model with two heating options. Buyers can choose either steam heating or electric heating according to the utilities available at the processing site.
Steam Heating: The steam heating configuration has a total heating power of 7.68kW. It requires a high-pressure steam range of 0.4–0.6MPa and a low-pressure requirement of ≤0.1MPa. The specified chamber temperature is ≤110°C.
Electric Heating: The electric heating configuration has a total heating power of 27.25kW. It does not require a steam supply, and the specified chamber temperature is ≤150°C.
Steam Heating Configuration
The steam heating version is suitable for processing facilities that have an appropriate steam supply available. The heating system uses steam to provide the required heat inside the processing chamber.
For the NWYX-250 steam configuration, the specified heating power is 7.68kW, with a high-pressure steam range of 0.4–0.6MPa and a low-pressure requirement of ≤0.1MPa.
The specified chamber temperature for this configuration is ≤110°C. The available steam system should be checked against these requirements before installation.
Electric Heating Configuration
The electric heating version uses an electric heating system instead of a steam supply. Its total heating power is 27.25kW, and the specified chamber temperature is ≤150°C.
This configuration can be considered for facilities where electric heating is preferred or where a suitable steam system is not available.
Smoking, Drying and Cooking Functions
The NWYX-250 is designed as a multi-process smokehouse. Depending on the selected processing procedure, the chamber can be used for smoking, drying and cooking applications.
The machine uses PLC programmable control, allowing processing procedures to be set according to the requirements of the product. The drying, cooking and smoking stages can be arranged according to the selected process settings.
The actual processing temperature and cycle should be determined according to the product being processed and the required production process.
304 Stainless Steel Structure
The NWYX-250 uses a 304 stainless steel structure. The machine is designed for food processing applications where the processing chamber and related surfaces need to be suitable for regular cleaning and production use.
The insulated chamber structure helps separate the processing environment from the surrounding area during operation. Regular cleaning of the chamber and product-contact areas is recommended after production.
Standard Hanging Trolley
The standard hanging trolley for the NWYX-250 measures 1013 × 1060 × 1700mm. The trolley is used for loading and moving products within the smokehouse during the processing workflow.
The actual loading arrangement depends on the product type, product size and selected processing method.
Commercial-Size Machine Configuration
The NWYX-250 has specified machine dimensions of 1450 × 1930 × 3100mm and a weight of approximately 1200kg. The same machine dimensions and weight apply to both the steam heating and electric heating configurations.
Because of its size and weight, the installation area should provide sufficient space for machine positioning, trolley movement, loading, cleaning and routine maintenance.
Suitable Applications
The NWYX-250 can be used for a range of commercial food processing applications, including:
- Meat smoking
- Sausage processing
- Poultry processing
- Smoked meat products
- Drying food products
- Cooking and heat-processing applications
The appropriate process depends on the product type, required processing conditions and selected heating configuration.
Choosing Between Steam and Electric Heating
The two NWYX-250 configurations have the same model, 250kg production capacity, trolley dimensions, machine dimensions and weight. The main difference is the heating system.
| Consideration | Steam Heating | Electric Heating |
|---|---|---|
| Model | NWYX-250 | NWYX-250 |
| Production Capacity | 250 kg/batch | 250 kg/batch |
| Heating Method | Steam | Electric |
| Total Heating Power | 7.68 kW | 27.25 kW |
| High-Pressure Steam | 0.4–0.6 MPa | Not required |
| Low-Pressure Steam | ≤0.1 MPa | Not required |
| Chamber Temperature | ≤110°C | ≤150°C |
If the processing facility already has a suitable steam supply, the steam heating configuration can be considered. If the facility prefers electric heating or does not have the required steam infrastructure, the electric configuration provides an alternative.
Installation and Utility Requirements
The heating configuration should be confirmed before installation because the two versions have different utility requirements.
For the steam heating version, the available steam supply should meet the specified 0.4–0.6MPa high-pressure range and ≤0.1MPa low-pressure requirement.
For the electric heating version, the installation should provide sufficient electrical capacity for the 27.25kW heating specification.
The installation area should also accommodate the machine dimensions of 1450 × 1930 × 3100mm and provide sufficient working space for the standard 1013 × 1060 × 1700mm hanging trolley.
🛠️ Maintenance Tips
- Disconnect the relevant power or utility supply before cleaning, inspection or maintenance.
- Clean the processing chamber and product-contact surfaces after production.
- Remove food residue, grease and other buildup from the chamber and related components.
- Check the door seals and fittings regularly for wear or damage.
- For the steam heating version, inspect steam connections and related components regularly.
- For the electric heating version, check the heating and electrical components according to the manufacturer’s maintenance instructions.
- Clean the hanging trolley regularly and keep the working area around the machine clean.
Frequently Asked Technical Questions
Q: What is the capacity of the NWYX-250 smokehouse?
A: The NWYX-250 has a production capacity of 250kg per batch. The capacity is the same for both the steam heating and electric heating configurations.
Q: Is the NWYX-250 available with steam and electric heating?
A: Yes. The NWYX-250 is one model with two heating configurations: steam heating and electric heating. The production capacity and main machine dimensions are the same.
Q: What is the heating power of the NWYX-250 steam version?
A: The steam heating configuration has a total heating power of 7.68kW. It requires a high-pressure steam range of 0.4–0.6MPa and a low-pressure requirement of ≤0.1MPa.
Q: What is the heating power of the NWYX-250 electric version?
A: The electric heating configuration has a total heating power of 27.25kW and does not require a steam supply.
Q: What is the specified chamber temperature of the NWYX-250?
A: The specified chamber temperature is ≤110°C for the steam heating configuration and ≤150°C for the electric heating configuration.
Q: What are the dimensions and weight of the NWYX-250?
A: The NWYX-250 measures 1450 × 1930 × 3100mm and weighs approximately 1200kg. The standard hanging trolley measures 1013 × 1060 × 1700mm.
Q: Which heating configuration should I choose for the NWYX-250?
A: The choice mainly depends on the utilities available at the installation site. The steam version requires a suitable steam supply, while the electric version requires sufficient electrical capacity for its 27.25kW heating specification.
Q: What products can be processed in the NWYX-250?
A: The NWYX-250 can be used for suitable meat, sausage, poultry and other food products requiring smoking, drying or cooking processes. The appropriate process depends on the product and processing requirements.
Related Smokehouse Machines
The NWYX-250 is part of Newin’s smokehouse range, which includes machines with different production capacities and configurations. You can review the Commercial Smoke House category to compare other models.
For a larger production requirement, the NWYX-1000 Industrial Smokehouse provides a 1000kg batch capacity with steam or electric heating configurations.
Request a Quote
If you are interested in the NWYX-250, please specify whether you require the steam heating or electric heating configuration when requesting a quotation.
It is also helpful to provide your product type, required production capacity, available steam or electrical utilities, and installation requirements. Newin can then confirm the appropriate NWYX-250 configuration for your application.
