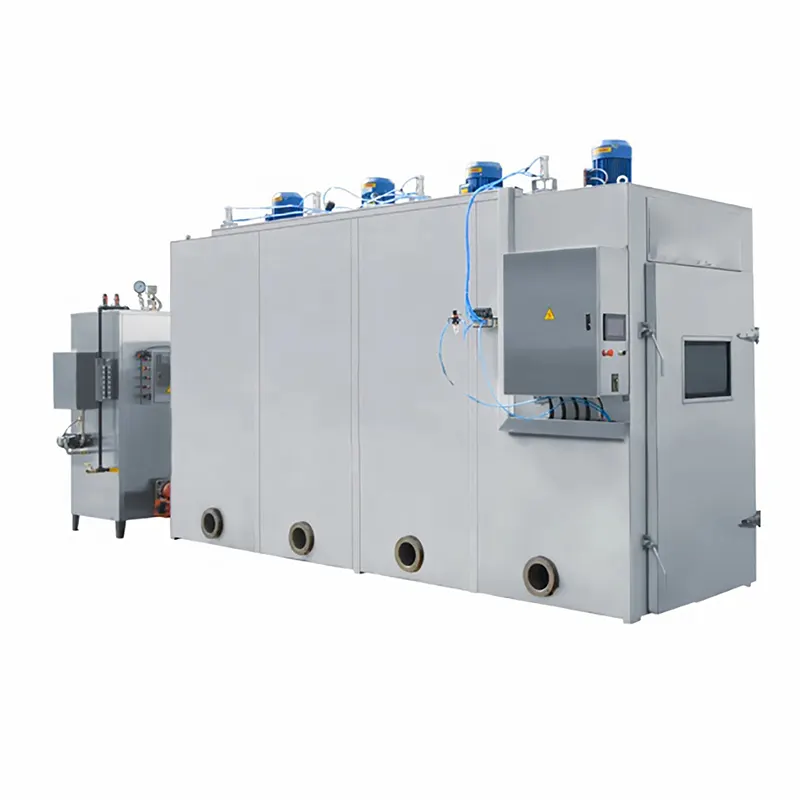

The Newin NWYX-1000 is a 1000kg industrial smokehouse designed for large-batch meat and food processing. The same NWYX-1000 model is available in two heating configurations: steam heating and electric heating. Both versions have a 1000kg production capacity, while the heating system, total power, operating temperature and related utility requirements are different.
The smokehouse is designed for processing applications such as meat, sausage and poultry products. Depending on the selected configuration, the machine uses either steam or electric heating to provide the required heating conditions for the processing chamber.
For buyers comparing the two configurations, the main difference is the available heating utility. The steam-heated NWYX-1000 requires a steam supply and has a total power of 25.18kW, while the electric-heated version has a total power of 97.18kW and does not require a steam supply.
Technical Specifications
| Parameter | NWYX-1000 Steam Heating | NWYX-1000 Electric Heating |
|---|---|---|
| Model | NWYX-1000 | NWYX-1000 |
| Production Capacity | 1000 kg | 1000 kg |
| Total Power | 25.18 kW | 97.18 kW |
| High-Pressure Steam | 0.4–0.6 MPa | / |
| Low-Pressure Steam | ≤0.1 MPa | / |
| Chamber Temperature | <110°C | <150°C |
| Standard Hanging Trolley | 1013 × 1060 × 1700 mm | 1013 × 1060 × 1700 mm |
| Double-Door Dimensions | 3700 × 2500 × 3100 mm | 3700 × 2500 × 3100 mm |
| Pass-Through Dimensions | 2060 × 4750 × 3100 mm | 2060 × 4750 × 3100 mm |
| Weight | 3600 kg | 3600 kg |
1000kg Batch Processing Capacity
The NWYX-1000 has a production capacity of 1000kg per batch. The same production capacity applies to both the steam-heated and electric-heated versions.
This capacity makes the NWYX-1000 suitable for larger production operations that require batch processing of meat, sausage, poultry and other suitable food products.
Two Heating Configurations for the Same Model
The NWYX-1000 is available with either steam heating or electric heating. The machine model remains NWYX-1000, but the heating system and corresponding technical parameters are different.
Steam Heating Version: The steam-heated configuration has a total power of 25.18kW. It requires a steam supply with a high-pressure range of 0.4–0.6MPa and a low-pressure requirement of ≤0.1MPa. The specified chamber temperature is below 110°C.
Electric Heating Version: The electric-heated configuration has a total power of 97.18kW. No steam pressure specification is required for this version, and the specified chamber temperature is below 150°C.
Steam Heating Configuration
The steam heating version is designed for facilities that already have a suitable steam supply. Its total power is 25.18kW, with a high-pressure steam requirement of 0.4–0.6MPa and a low-pressure requirement of ≤0.1MPa.
The specified chamber temperature for the steam-heated NWYX-1000 is below 110°C. Before installation, the available steam system should be checked against these requirements.
Electric Heating Configuration
The electric heating version uses electric heating instead of a steam supply. Its total power is 97.18kW, and the specified chamber temperature is below 150°C.
This configuration can be considered when the processing facility prefers an electrically heated smokehouse or does not have the required steam infrastructure.
Standard Hanging Trolley
Both NWYX-1000 heating configurations use the same standard hanging trolley dimensions of 1013 × 1060 × 1700mm.
The trolley configuration is intended for loading and moving products inside the smokehouse during the processing workflow. The actual loading arrangement should be determined according to the product type and production process.
Large Industrial Chamber Configuration
The NWYX-1000 is available with the same overall chamber dimensions for both heating configurations. The specified double-door dimensions are 3700 × 2500 × 3100mm, while the pass-through dimensions are 2060 × 4750 × 3100mm.
With a machine weight of approximately 3600kg, the NWYX-1000 requires an appropriate installation area and suitable handling arrangements during positioning and installation.
Suitable Applications
The NWYX-1000 can be used for large-batch processing of a range of meat and food products, including:
- Meat products
- Sausages
- Poultry products
- Smoked meat products
- Other suitable food products requiring controlled heating and smoking processes
The appropriate processing configuration depends on the product, required process conditions and selected heating method.
Choosing Between Steam and Electric Heating
The two NWYX-1000 configurations have the same model number, production capacity, trolley dimensions, chamber dimensions and weight. The main difference is the heating system.
| Consideration | Steam Heating | Electric Heating |
|---|---|---|
| Heating Method | Steam | Electric |
| Production Capacity | 1000 kg | 1000 kg |
| Total Power | 25.18 kW | 97.18 kW |
| High-Pressure Steam | 0.4–0.6 MPa | Not required |
| Low-Pressure Steam | ≤0.1 MPa | Not required |
| Chamber Temperature | <110°C | <150°C |
For facilities with an existing suitable steam system, the steam heating configuration can be considered. Where steam infrastructure is not available and electric heating is preferred, the electric configuration provides an alternative using a 97.18kW total power specification.
Installation and Utility Requirements
The heating configuration should be confirmed before installation because the two versions have different utility requirements.
For the steam heating version, the available steam system should meet the specified high-pressure and low-pressure requirements. For the electric heating version, the installation should provide sufficient electrical capacity for the 97.18kW total power requirement.
The installation area should also accommodate the machine dimensions of 3700 × 2500 × 3100mm for the double-door configuration and 2060 × 4750 × 3100mm for the pass-through configuration, according to the selected installation arrangement.
🛠️ Maintenance Tips
- Disconnect the relevant power or utility supply before cleaning, inspection, or maintenance.
- Clean the processing chamber and product-contact surfaces after production.
- Remove grease, food residue and other buildup from the chamber and related components.
- Check door seals and fittings regularly for wear or damage.
- For the steam heating version, inspect the steam connections and related components regularly.
- For the electric heating version, check the heating and electrical components according to the manufacturer’s maintenance instructions.
- Keep the chamber, trolley and surrounding working area clean and dry.
Frequently Asked Technical Questions
Q: What is the capacity of the NWYX-1000 smokehouse?
A: The NWYX-1000 has a production capacity of 1000kg per batch. Both the steam heating and electric heating versions have the same production capacity.
Q: Is the NWYX-1000 available with steam and electric heating?
A: Yes. The NWYX-1000 is available in two heating configurations: steam heating and electric heating. The model number remains NWYX-1000, while the heating system and related technical specifications are different.
Q: What is the total power of the steam heating NWYX-1000?
A: The steam heating version has a total power of 25.18kW. It requires a high-pressure steam range of 0.4–0.6MPa and a low-pressure requirement of ≤0.1MPa.
Q: What is the total power of the electric heating NWYX-1000?
A: The electric heating version has a total power of 97.18kW and does not require a steam supply.
Q: What is the maximum specified temperature of the NWYX-1000?
A: The specified chamber temperature is below 110°C for the steam heating version and below 150°C for the electric heating version.
Q: What are the dimensions and weight of the NWYX-1000?
A: The specified double-door dimensions are 3700 × 2500 × 3100mm, and the pass-through dimensions are 2060 × 4750 × 3100mm. The standard hanging trolley measures 1013 × 1060 × 1700mm, and the machine weighs approximately 3600kg.
Q: Which NWYX-1000 heating configuration should I choose?
A: The choice mainly depends on the utilities available at the installation site. The steam heating version requires a suitable steam supply, while the electric heating version requires sufficient electrical capacity for its 97.18kW total power specification.
Related Smokehouse Machines
Newin offers smokehouse equipment in different capacities and configurations. You can review the Smoke House category to compare other models.
For a smaller-capacity smoking application, the NWYX-250 Commercial Cold Smoking House provides a different capacity and processing configuration.
For other meat processing equipment, you can also explore the Meat Processing Equipment category.
Request a Quote
If you are interested in the NWYX-1000 industrial smokehouse, please specify whether you require the steam heating or electric heating configuration when requesting a quotation.
It is also helpful to provide your required production capacity, available steam or electrical utilities, product type and installation requirements. Newin can then confirm the appropriate NWYX-1000 configuration for your application.
