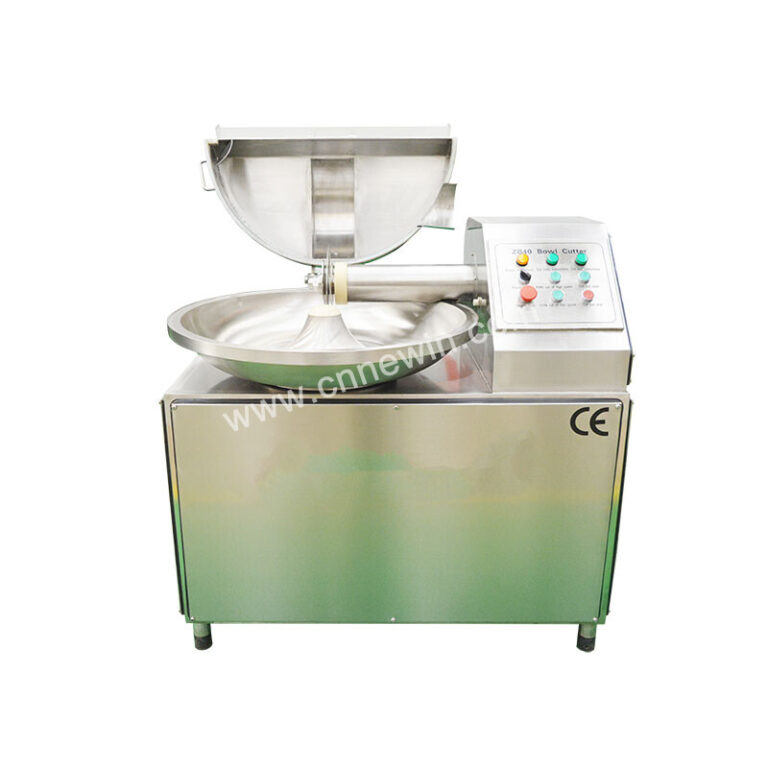

The Newin ZB-40 is an industrial meat bowl chopper machine designed for batch processing in commercial and food processing operations. It combines a rotating bowl with a three-blade cutting system to process 20–30 kg of material per batch.
The ZB-40 uses dual blade speeds of 1480 and 2960 rpm, while the bowl rotates at 7 rpm. This configuration allows operators to select the appropriate cutting speed for different processing requirements. The machine has a total power of 5.1 kW and a machine weight of 400 kg, making it suitable for fixed-position production environments where batch processing capacity and stable operation are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZB-40 |
| Processing Capacity | 20–30 kg/batch |
| Number of Blades | 3 pcs |
| Blade Speed | 1480 / 2960 rpm |
| Bowl Speed | 7 rpm |
| Total Power | 5.1 kW |
| Power Supply | 380V / 50Hz, 3-phase |
| Control | Dual Speed |
| Machine Dimensions | 1140 × 830 × 1080 mm |
| Machine Weight | 400 kg |
Voltage customization: Other voltage configurations can be provided on request. Please confirm the required voltage before ordering.
Key Features
- 20–30 kg batch capacity: Designed for batch processing rather than small-volume countertop preparation.
- Three-blade cutting system: The ZB-40 is equipped with three cutting blades for bowl chopping applications.
- Dual blade speeds: Blade speeds of 1480 and 2960 rpm provide two operating speed options.
- 7 rpm bowl speed: The rotating bowl works with the high-speed blade system during processing.
- 5.1 kW total power: Provides the power required for the machine’s industrial batch-processing configuration.
- Floor-standing design: With a machine weight of approximately 400 kg, the ZB-40 is intended for a fixed production area rather than tabletop use.
How the ZB-40 Meat Bowl Chopper Works
The ZB-40 uses a rotating bowl and high-speed cutting blades to process the material inside the bowl. The bowl rotates at 7 rpm while the three blades operate at either 1480 or 2960 rpm.
During operation, material is placed into the bowl and processed as the bowl and blades rotate. The dual-speed configuration allows the operator to select between the two available blade speeds according to the processing requirement and material being handled.
With a batch capacity of 20–30 kg, the machine is designed for production environments that require larger batch processing than compact commercial meat cutters.
Suitable Applications
The ZB-40 can be considered for commercial food preparation and meat processing applications where batch chopping is required.
- Commercial meat processing
- Sausage and meat product preparation
- Central kitchen production
- Food processing facilities
- Other suitable batch food-processing applications
Material suitability depends on the product formulation and processing requirements. For a specific application, confirm the material type and required processing result before ordering.
Choosing the ZB-40 for Your Application
The ZB-40 is suited to buyers who need an industrial bowl chopper with a 20–30 kg batch capacity and dual blade speeds. Its 5.1 kW total power and 400 kg machine weight make it more appropriate for a dedicated production area than for a small preparation workstation.
When selecting a bowl chopper, consider the required batch size, available installation space, power supply, material being processed, and the desired processing result. If your production requirement is below the ZB-40’s 20–30 kg batch range, a smaller bowl chopper may be more appropriate. For larger batch requirements, consider a higher-capacity model in the same product range.
Installation and Power Supply
The standard power supply for the ZB-40 is 380V / 50Hz, three-phase. Because electrical requirements can vary between markets and production facilities, voltage customization is available on request.
Before placing an order, confirm the required voltage and frequency with Newin so the electrical configuration can be matched to the installation site.
🛠️ Maintenance Tips
- Clean meat residue from the bowl and cutting area after each use.
- Clean and dry the cutting components after washing.
- Check the condition of the blades regularly and maintain or replace the cutting components when necessary.
- Keep the machine surface and surrounding working area clean after operation.
- Follow the supplied operating and maintenance instructions for lubrication and component replacement.
Frequently Asked Technical Questions
Q: What is the capacity of the ZB-40 meat bowl chopper?
A: The ZB-40 has a processing capacity of 20–30 kg per batch.
Q: How many blades does the ZB-40 use?
A: The ZB-40 is equipped with three cutting blades.
Q: What are the blade speeds of the ZB-40?
A: The ZB-40 has two blade speed settings: 1480 rpm and 2960 rpm.
Q: What is the bowl speed of the ZB-40?
A: The bowl rotates at 7 rpm.
Q: What power supply does the ZB-40 require?
A: The standard configuration is 380V / 50Hz, three-phase. Other voltage configurations can be customized on request.
Q: What are the dimensions and weight of the ZB-40?
A: The machine dimensions are 1140 × 830 × 1080 mm, and the machine weight is approximately 400 kg.
Request a Quote
If you are sourcing an industrial meat bowl chopper for commercial or food processing use, contact Newin with your required batch capacity, material type, power supply, and application details. We can confirm the suitable ZB-40 configuration and available voltage options for your market.
Meat Cutter Mixer Technical Parameters
| Model | Production capacity (KG/time) | Power (KW) | Voltage | Number of blades | Blade speed (rpm/min) | Rotating speed (r/min) | Host size (mm) | The total weight (kg) |
| ZB-5L | 4 | 0.55 | 380/50Hz | 3 | 1400 | 23 | 440*675*335 | 55 |
| ZB-20 | 15 | 2.55 | 380/50Hz | 3 | 1440/2880 | 23 | 650*860*950 | 200 |
| ZB-40 | 30 | 5.1 | 380/50Hz | 3 | 1440/2880 | 23 | 900*1115*1080 | 400 |

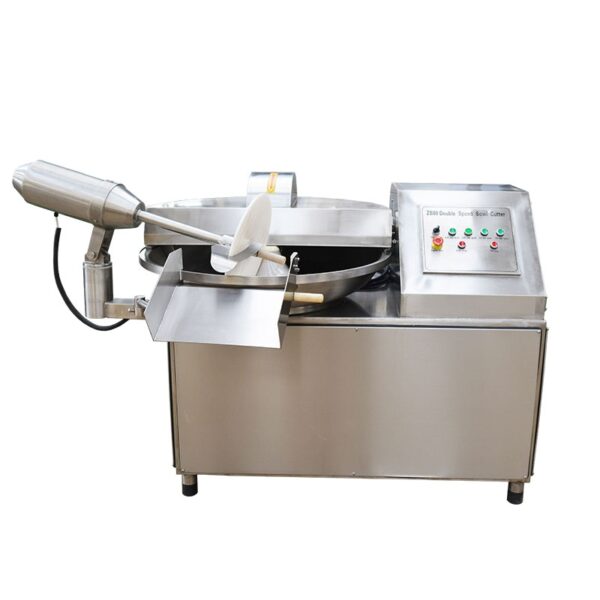

| ZB-80 | 60 | 13.17 | 380/50Hz | 6 | 1440/2880 | 14/20 | 1250*1940*1610 | 780 |
| ZB-80 Frequency conversion speed regulation | 60 | 13.17 | 380/50Hz | 6 | 300-2880 | 14/20 | 1250*1940*1610 | 780 |
| ZB125 Frequency conversion speed regulation | 90 | 20.67 | 380/50Hz | 6 | 300-2880 | 14/20 | 1430*2135*1635 | 1000 |
