Industrial Bowl Chopper for Meat Processing
Introduction
Meat Bowl cutter makes use of high speed rotating cutting chop cutting effect, Fine Chop meat, minced meat, fat, and other main raw material into chopped meat or meat slurry, at the same time, mix other raw materials such as water, Borneol, and accessories uniform mixing to milk form. Running time can be shortened, reduce emissions, maintain the natural color of fillings, flexibility, production rate, and product shelf life.
Features
- This machine is widely used for meat, vegetables, nuts, seafood, spices, and so on
- Transfer pot for casting stainless steel material and spill pans along to effectively prevent leakage phenomenon
- Key parts with a machining center, ensuring machining accuracy
- The cutting tool adopts imported material manufactured by special technology, the import tool is optional.
- The principal axis adopts import double spindle bearing tandem installation, guaranteeing the cutting tool axis group has good concentricity.
Technical parameters of Bowl chopper for Meat processing
Model | Production capacity (KG/time) | Power (KW) | Voltage | Number of blades | Blade speed (rpm/min) | Rotating speed (r/min) | Host size (mm) | The total weight (kg) |

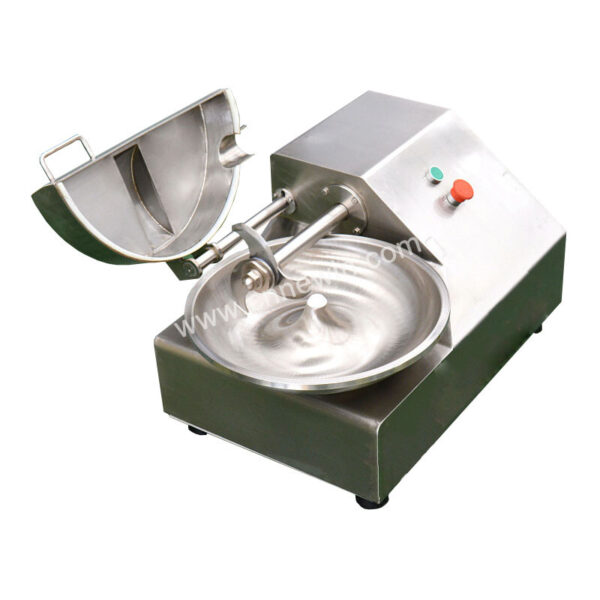

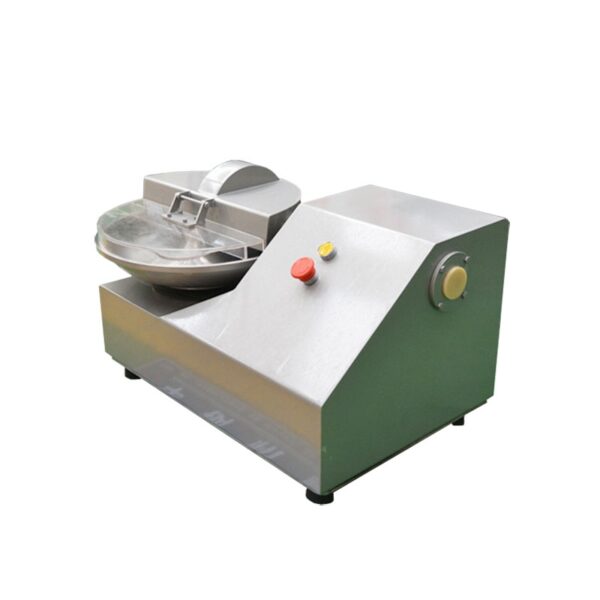

ZB-5L | 4 | 0.55 | 380/50Hz | 3 | 1400 | 23 | 440*675*335 | 55 |
ZB-20 | 15 | 2.55 | 380/50Hz | 3 | 1440/2880 | 23 | 650*860*950 | 200 |
ZB-40 | 30 | 5.1 | 380/50Hz | 3 | 1440/2880 | 23 | 900*1115*1080 | 400 |

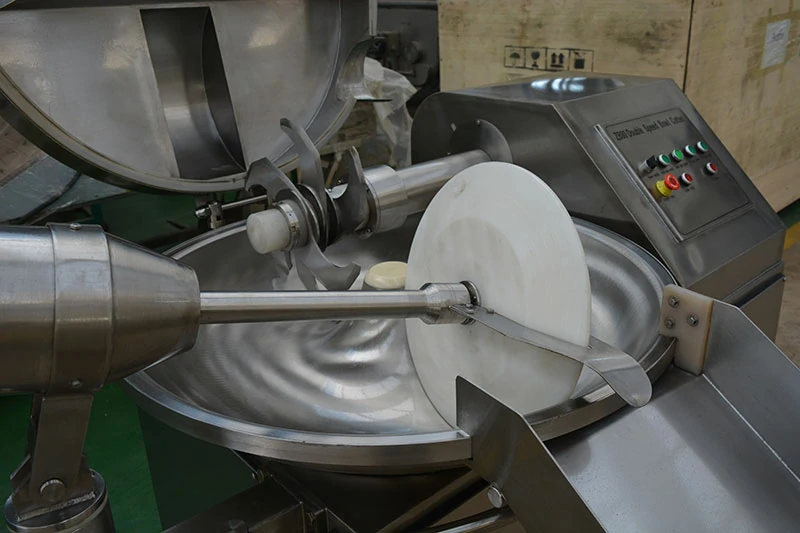

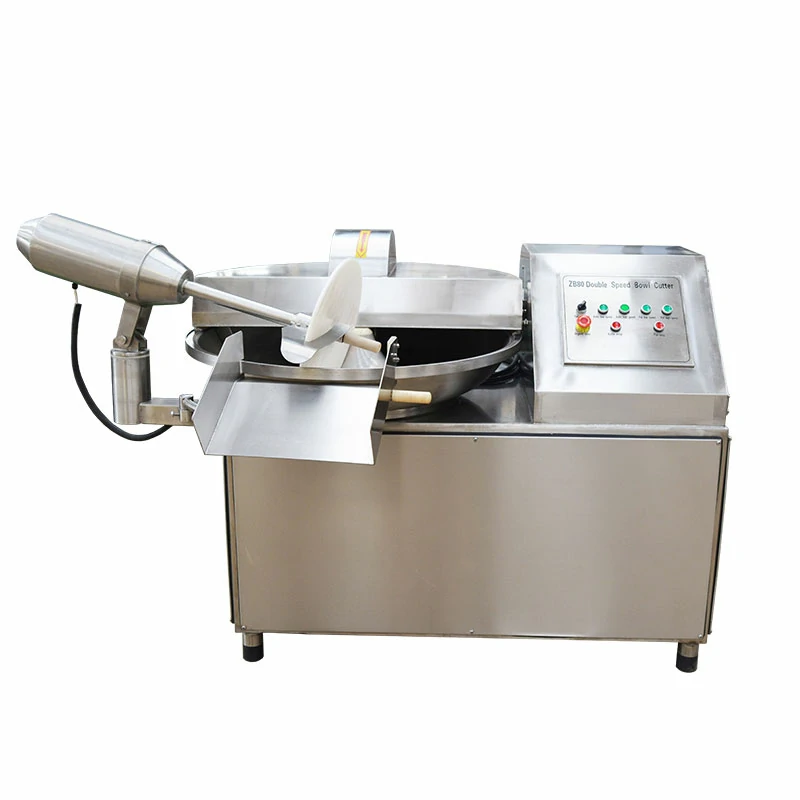

ZB-80 | 60 | 13.17 | 380/50Hz | 6 | 1440/2880 | 14/20 | 1250*1940*1610 | 780 |

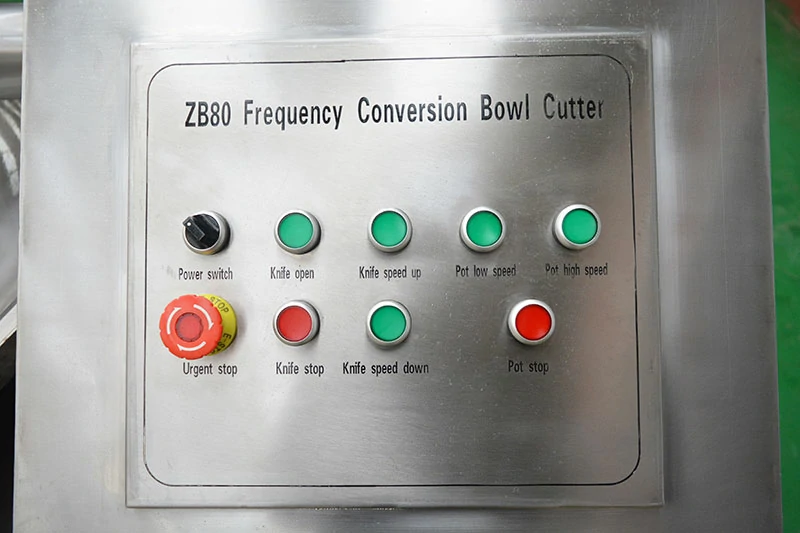

ZB-80 Frequency conversion speed regulation | 60 | 13.17 | 380/50Hz | 6 | 300-2880 | 14/20 | 1250*1940*1610 | 780 |
ZB125 Frequency conversion speed regulation | 90 | 20.67 | 380/50Hz | 6 | 300-2880 | 14/20 | 1430*2135*1635 | 1000 |
