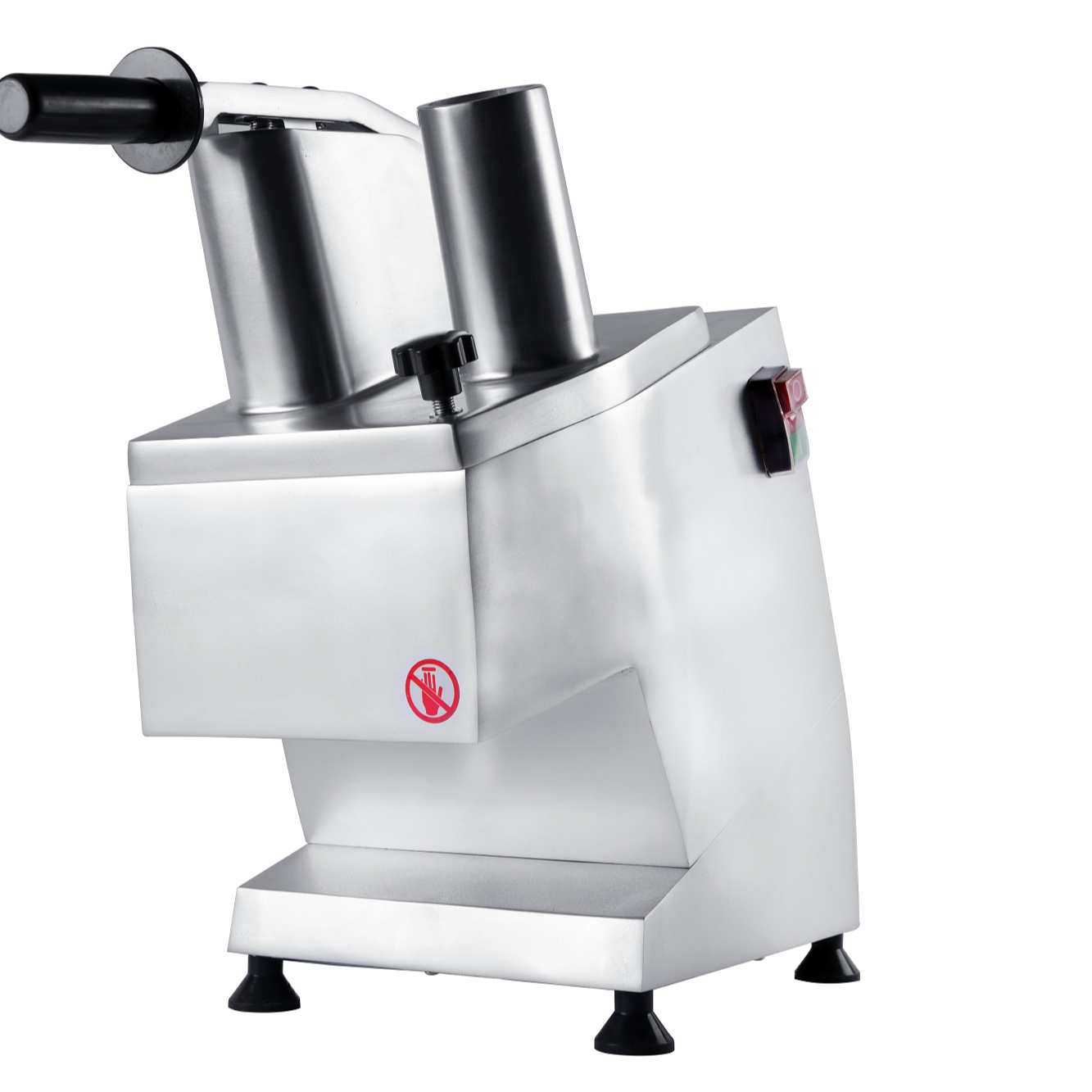

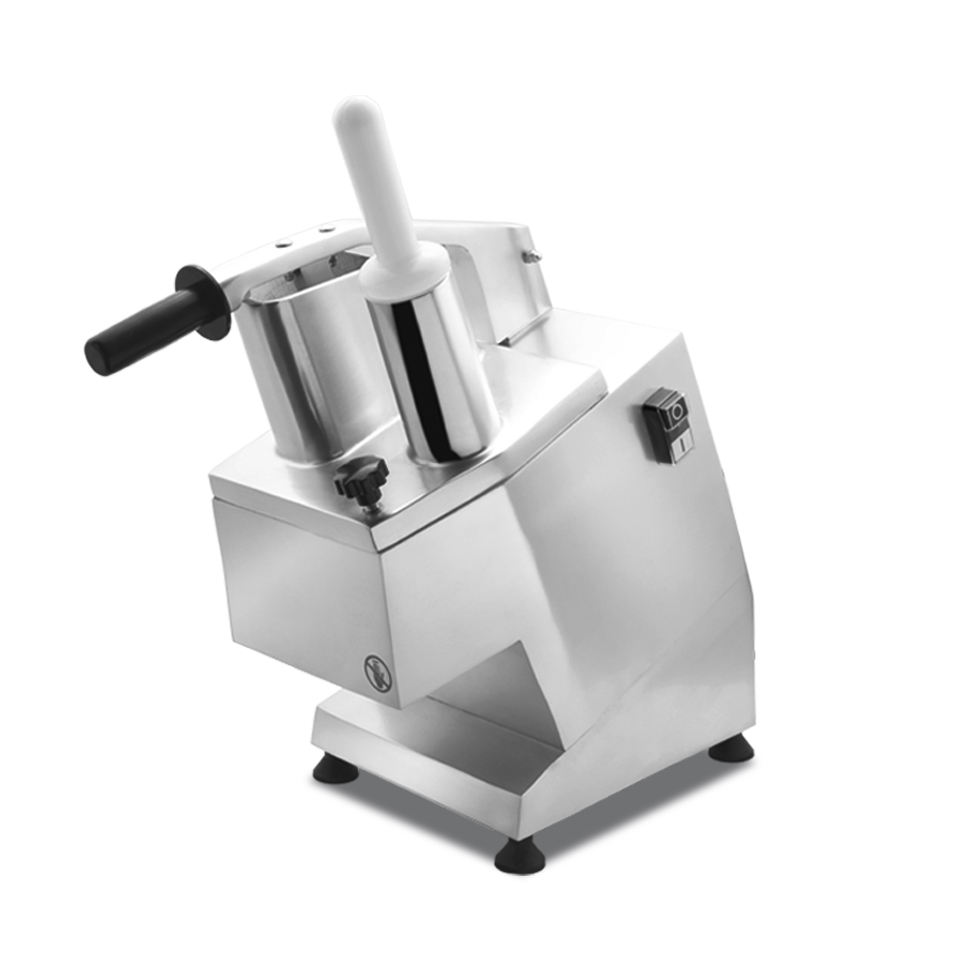

Commercial Electric Vegetable cutter machine HLC-300A
The Newin HLC-300A is a multi-function commercial vegetable cutter designed for restaurants, catering kitchens, canteens, central kitchens and small food processing operations. It can handle several common vegetable preparation tasks, including slicing, shredding, grating and dicing, by changing the cutting components.
The machine is supplied with five interchangeable cutter heads, including three grating discs in 3mm, 4mm and 7mm sizes and two cutting discs in 2mm and 4mm configurations. This allows operators to select a suitable cutting method and size according to the ingredient and the required finished product.
With a 550W motor, a compact 540 × 310 × 550 mm body and a net weight of 22.2 kg, the HLC-300A is designed for commercial vegetable preparation where several cutting functions are required from one machine.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HLC-300A |
| Power | 550W |
| Voltage / Frequency | 220V / 50Hz or 110V / 60Hz |
| Cutter Configuration | 5 interchangeable cutter heads |
| Grating Discs | 3mm, 4mm, 7mm |
| Cutting Discs | 2mm, 4mm |
| Body Material | Anodized aluminum alloy |
| Blade Material | SUS420J2 stainless steel |
| Net Weight | 22.2 kg |
| Machine Dimensions | 540 × 310 × 550 mm |
Five Interchangeable Cutter Heads
The HLC-300A uses interchangeable cutting components so the same machine can be configured for different vegetable preparation tasks. The standard configuration includes three grating discs and two cutting discs.
The grating discs are available in 3mm, 4mm and 7mm sizes, while the cutting discs are available in 2mm and 4mm configurations. Operators can select the appropriate cutter according to the vegetable, desired cut and preparation requirements.
Slicing, Shredding, Grating and Dicing
The HLC-300A is designed for several common commercial vegetable cutting applications. Depending on the selected cutter head, it can be used for different forms of slicing, shredding, grating and dicing.
This multi-function configuration can be useful for kitchens that prepare several types of vegetables and need different cut sizes during daily food preparation. The actual cutting result depends on the selected cutting component and the characteristics of the ingredient.
Suitable firm and medium-firm vegetables can include potatoes, carrots, cucumbers, zucchini, onions, celery and cabbage. Soft produce may require additional care because cutting results can vary with the condition and texture of the ingredient.
550W Motor for Commercial Vegetable Preparation
The HLC-300A is equipped with a 550W motor for its vegetable cutting operations. The motor drives the selected cutting assembly while the operator feeds the vegetables through the machine.
Actual processing performance depends on the vegetable type, size, moisture content, cutting method and operating conditions. For this reason, production capacity should be evaluated according to the specific ingredients and cutting configuration required for your application.
Compact Commercial Configuration
The machine measures 540 × 310 × 550 mm and has a net weight of 22.2 kg. Its relatively compact configuration makes it suitable for commercial preparation areas where working space is limited.
The HLC-300A can be placed in a suitable food preparation area with enough space around the machine for feeding, collecting processed vegetables, cleaning and routine maintenance.
Anodized Aluminum Body and Stainless Steel Cutting Components
The main body uses anodized aluminum alloy, while the cutting components use SUS420J2 stainless steel. These materials are used in the machine structure and cutting assembly for regular vegetable preparation applications.
Because vegetables can leave moisture and food residue on the cutting components, the cutter heads should be cleaned after use and dried before storage or the next operation.
Magnetic Safety Switch
The HLC-300A uses a magnetic safety switch connected to the feed cover. The motor is designed to stop when the cover is lifted, helping prevent operation while the cutting area is open.
Operators should still follow normal machine safety procedures, including switching off and disconnecting the power supply before removing cutting components or carrying out cleaning and maintenance.
Suitable Applications
The HLC-300A can be used in commercial food preparation environments where different vegetable cutting methods are required, including:
- Restaurants and hotels
- School and factory canteens
- Central kitchens
- Catering kitchens
- Small food processing operations
- Commercial vegetable preparation areas
It is particularly suitable for applications that require more than one cutting method and want to use interchangeable cutting components instead of separate machines for every preparation task.
Choosing the Right Commercial Vegetable Cutter
When selecting a vegetable cutting machine, consider the vegetables you need to process, the required cutting shape and size, the expected workload and the available installation space.
The HLC-300A is suited to applications that require several cutting functions from one machine. If your main requirement is batch chopping rather than producing a specific slice, strip or shred shape, a commercial vegetable chopper may be a better fit.
For a 10L batch vegetable chopper, see the Newin NW-QS810 10L Commercial Vegetable Chopper.
For a smaller 7L commercial chopper configuration, see the Newin NW-WK-RO7 7L Commercial Vegetable Chopper.
For a specialized green onion shredding application, the Newin NWXC-988 Commercial Green Onion Shredder is another option.
You can also compare different models in our Commercial Vegetable Cutting Machines category.
Installation and Power Supply
The HLC-300A is available in 220V / 50Hz or 110V / 60Hz configurations. Confirm the required voltage and frequency before ordering so that the machine configuration matches the intended installation location.
Place the machine on a stable, level working surface with sufficient room for feeding vegetables, collecting the processed product and removing the cutter components for cleaning.
Before operating the machine, check that the selected cutter head is correctly installed and that the feed cover and safety switch are in their normal operating positions.
🛠️ Maintenance Tips
- Clean the cutter heads after regular use and remove vegetable residue from the cutting area.
- Wash removable cutting components according to the supplied cleaning instructions.
- Dry the cutter heads thoroughly after cleaning before storage or reinstallation.
- Keep the motor housing and electrical components dry and do not immerse the machine body in water.
- Check the cutting components regularly and maintain or replace them when necessary.
- Make sure the safety switch and feed cover are clean and functioning correctly before operation.
- Disconnect the power supply before removing cutter heads or carrying out maintenance.
Frequently Asked Questions
Q: What vegetables can the HLC-300A process?
A: The HLC-300A can be used for common firm and medium-firm vegetables such as potatoes, carrots, cucumbers, zucchini, onions, celery and cabbage. Cutting results depend on the ingredient and selected cutter head.
Q: How many cutter heads are included with the HLC-300A?
A: The standard configuration includes five interchangeable cutter heads: three grating discs in 3mm, 4mm and 7mm sizes, plus two cutting discs in 2mm and 4mm configurations.
Q: Can the HLC-300A perform different cutting methods?
A: Yes. The machine is designed for several vegetable preparation methods, including slicing, shredding, grating and dicing, depending on the selected cutting component.
Q: What is the power requirement of the HLC-300A?
A: The HLC-300A uses a 550W motor and is available in 220V / 50Hz or 110V / 60Hz configurations.
Q: Is the HLC-300A suitable for restaurants and central kitchens?
A: Yes. The HLC-300A is designed for commercial vegetable preparation and can be used in restaurants, hotels, canteens, catering kitchens and small food processing operations.
Q: How should the HLC-300A be cleaned?
A: Disconnect the power before cleaning. Remove the cutting components, clean them according to the supplied instructions and dry them thoroughly before reinstallation. The machine body and electrical components should be kept dry.
Q: What is the difference between a vegetable cutter and a vegetable chopper?
A: A vegetable cutter is generally selected when a specific cutting shape or size is required, such as slices, strips, shreds or dices. A vegetable chopper is mainly used for batch chopping ingredients into smaller pieces.
Related Vegetable Processing Equipment
Newin offers different vegetable processing machines for commercial food preparation. The HLC-300A is designed for multi-function cutting with interchangeable cutting components, while other models focus on batch chopping or specialized vegetable cutting applications.
For batch chopping, see the NW-QS810 10L Commercial Vegetable Chopper or the NW-WK-RO7 7L Commercial Vegetable Chopper.
For fine green onion preparation, see the NWXC-988 Commercial Green Onion Shredder.
For a broader comparison of vegetable cutting equipment, visit the Commercial Vegetable Cutting Machines category.
Request a Quote
If you need a commercial vegetable cutter for slicing, shredding, grating and dicing applications, the Newin HLC-300A provides five interchangeable cutter heads in one compact machine configuration.
When requesting a quotation, provide the vegetables you plan to process, the required cutting method and size, your expected workload and the required voltage. This information helps confirm the appropriate cutter configuration for your application.
