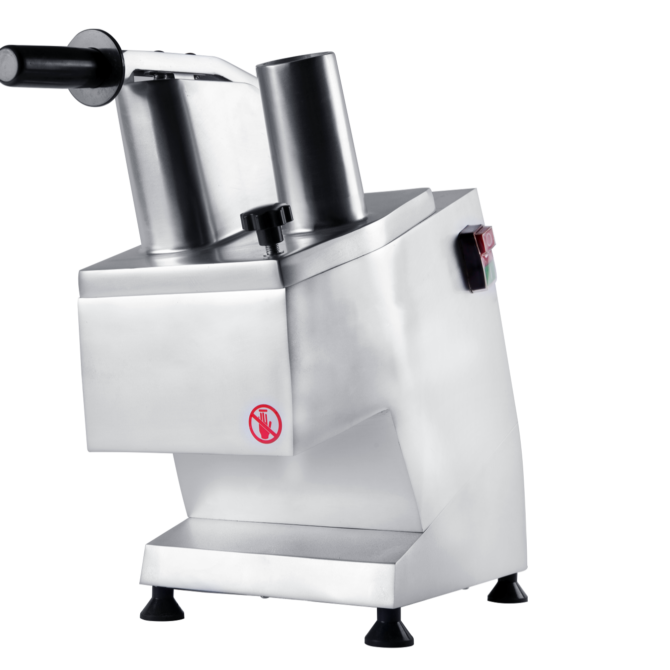

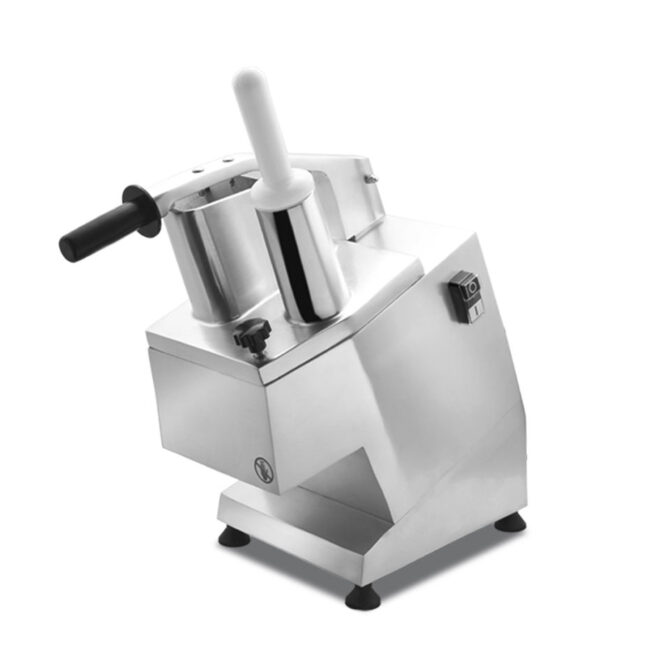

상업용 전기 야채 절단기 HLC-300A
Newin HLC-300A 상업용 야채 절단기 cuts, shreds, grates, and dices in one compact unit. Five interchangeable cutter heads switch out in under 30 seconds (no tools required). Designed for restaurants, school canteens, central kitchens, and small-scale food processing lines that need 200-600kg of prepped produce per shift. As a core part of our 야채 다지기 기계 lineup, the HLC-300A replaces 3-4 manual prep stations at a fraction of the labor cost.
The body uses anodized aluminum alloy (food-grade, corrosion-resistant per GB 4806 standard). Blades are SUS420J2 stainless steel hardened to 52 HRC. A magnetic safety switch kills the motor the instant the feed cover lifts — no bypass, no override. This construction approach sets it apart from standard commercial vegetable choppers that rely on mechanical micro-switches prone to fatigue failure after 6-8 months.
Three grating discs (3mm/4mm/7mm) and two cutting discs (2mm/4mm) ship standard with every unit. That covers julienne, coarse shred, fine dice, and sheet cuts. Hard vegetables like carrots and potatoes feed through at roughly 100kg/h per disc set. Soft produce (tomatoes, ripe fruit) will bruise — this machine is not built for those. Buyers looking to buy vegetable cutter equipment in bulk can request custom blade sizes for specific regional produce types.
기술 사양
| 매개변수 | HLC-300A | 왜 중요한가 |
|---|---|---|
| 모델 | HLC-300A | Identifies exact configuration for spare parts ordering and blade compatibility. |
| 힘 | 550W | Sufficient torque for root vegetables (carrots, potatoes) without stalling; draws only 2.5A at 220V. |
| 전압 | 220V/50Hz 또는 110V/60Hz | Factory-configured at no cost to match destination country grid; eliminates buyer-side transformer purchase. |
| 블레이드 구성 | 5개의 교체 가능한 커터 헤드 | One machine covers slicing, shredding, grating, and dicing — replaces 3 separate single-function units. |
| 격자 디스크 | 3mm (H3), 4mm (H4), 7mm (H7) | Fine 3mm for garnish prep, 7mm for hash browns and coleslaw — covers 90% of commercial grating needs. |
| 절단 디스크 | 2mm (P2), 4mm (P4) | 2mm julienne for stir-fry prep, 4mm for french fry cuts and thicker shred applications. |
| 재료 | Anodized Aluminum Body + SUS420J2 Stainless Blades | Aluminum body resists citric acid corrosion from lemon/tomato contact; 420J2 steel holds edge sharpness for 800+ operational hours. |
| 순중량 | 22.2kg | Light enough for one operator to reposition on counter; stable enough to resist vibration walk during continuous operation. |
| 치수 | 540 × 310 × 550 mm | Fits standard 600mm commercial prep tables; footprint smaller than a typical 1/1 GN oven pan rack. |
Newin HLC-300A vs Industry Standard Vegetable Cutters
| Metric | Newin HLC-300A | Industry Standard |
|---|---|---|
| Safety Switch Type | Magnetic interlock (non-contact) | Mechanical micro-switch |
| Switch Lifespan | 100,000+ open/close cycles | 30,000 cycles (contact fatigue at 6-8 months) |
| 칼날 경도 | 52 HRC (SUS420J2, oil-quenched) | 45-48 HRC (standard 304 stainless) |
| Body Material Standard | Anodized aluminum per GB 4806 food-contact standard | Untreated aluminum or ABS plastic housing |
| Voltage Customization | Free factory configuration (220V or 110V) | Buyer must purchase external transformer |
B2B Order Information
| MOQ | 1 unit (sample order accepted) |
| Tiered Pricing | 1-9 units: list price / 10-49 units: 8% off / 50+ units: 12% off |
| 리드 타임 | Samples: 3-5 days / Bulk: 7-15 days |
| Shipping | Express (DHL/FedEx/UPS) for samples; Sea freight (FCL/LCL) for bulk |
| 맞춤 설정 | Voltage, blade sizes, logo printing (MOQ 10 for OEM color) |
| 결제 조건 | T/T (30% deposit, 70% before shipment), PayPal (samples only), Western Union |
이상적인 적용 분야
Daily prep of 50-200kg vegetables. Consistent julienne and dice cuts improve plate presentation and reduce cook-to-plate time.
Feed 300-1,000 diners per meal. One operator processes 500kg+ of cabbage, potatoes, and carrots in under 90 minutes.
Standardized cut sizes ensure portion control across multi-location operations. 2mm and 4mm discs cover SOP-specified output for meal prep distribution.
Fresh vegetable preparation for buffet lines. Quick disc swaps between service windows — shred lettuce, dice cucumber, grate carrots within 5 minutes.
Rinse and dry all discs within 10 minutes of use. Vegetable sap (especially from root vegetables) contains enzymes that oxidize blade edges — a 15-minute delay cuts first-sharpening interval from 800 to ~500 hours. Rotate the magnetic safety switch cover open and closed fully once per shift to prevent dust accumulation on the reed contact. Do not lubricate the motor bearing externally — it is sealed for life. If output volume drops 15%+ from baseline, check blade edge first (not motor). Dull blades force the motor to work harder and reduce throughput. Sharpen or replace before motor strain causes winding fatigue.
자주 묻는 질문
Q: What vegetables can the HLC-300A cut?
A: Newin HLC-300A handles potatoes, carrots, cucumbers, zucchini, onions, celery, cabbage, apples, and most firm-to-medium vegetables. Soft produce like tomatoes will bruise — this unit is designed for structural vegetables, not delicate fruit.
Q: Can I buy extra blade sets for the vegetable cutter machine?
A: Newin HLC-300A supports additional grating and cutting discs in all standard sizes (H3/H4/H7/P2/P4). Custom blade sizes for specific regional produce can be manufactured at MOQ 20 sets per size. Contact the account manager for pricing.
Q: How easy is it to clean the HLC-300A?
A: Newin HLC-300A features tool-free disassembly — all five cutter heads, the feed chute, and the discharge plate lift out in under 60 seconds. Washable components are water-rinse safe. The motor housing wipes down with a damp cloth; do not submerge.
Q: Is the HLC-300A suitable for very hard vegetables like pumpkin?
A: Newin HLC-300A works with medium-firm vegetables. Raw pumpkin and butternut squash exceed the 550W motor’s torque curve on the 2mm julienne disc — use the 7mm grating disc instead, or contact Newin for heavy-duty model recommendations (e.g., the QSJ-A series with 1.1kW motor).
Q: Can I get a vegetable cutter for small business with voltage for 110V?
A: Newin HLC-300A is factory-configurable to 110V/60Hz at no additional cost. Specify destination voltage at order placement; no buyer-side transformer needed.
