Home » Product » QV Vertical Meat Cutting Machine (Upgraded Version)

New

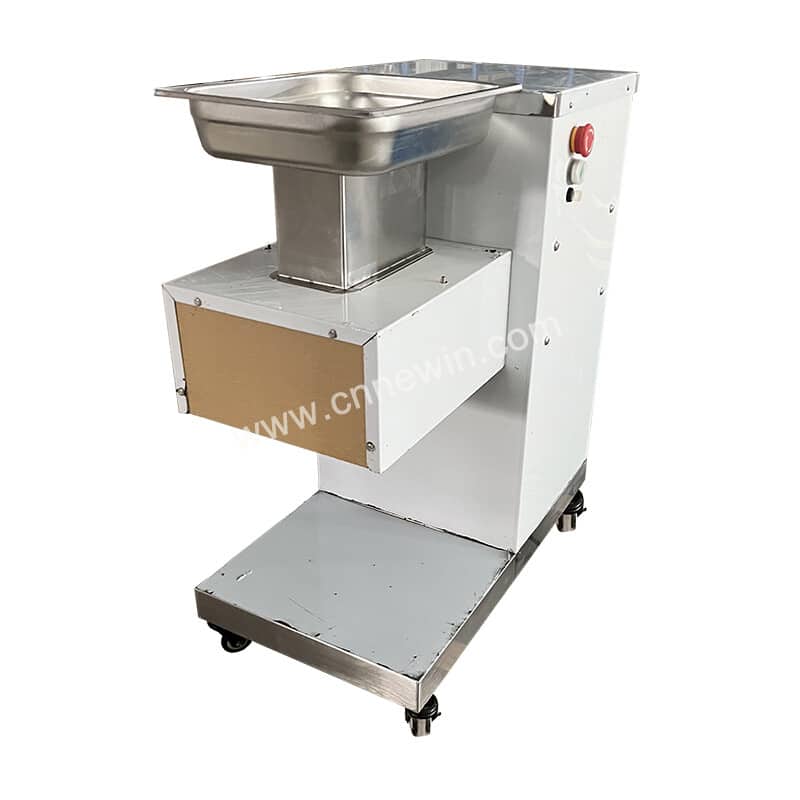

QV Vertical Meat Cutting Machine (Upgraded Version)
QV Vertical Meat Cutting Machine (Upgraded Version) - Image 2

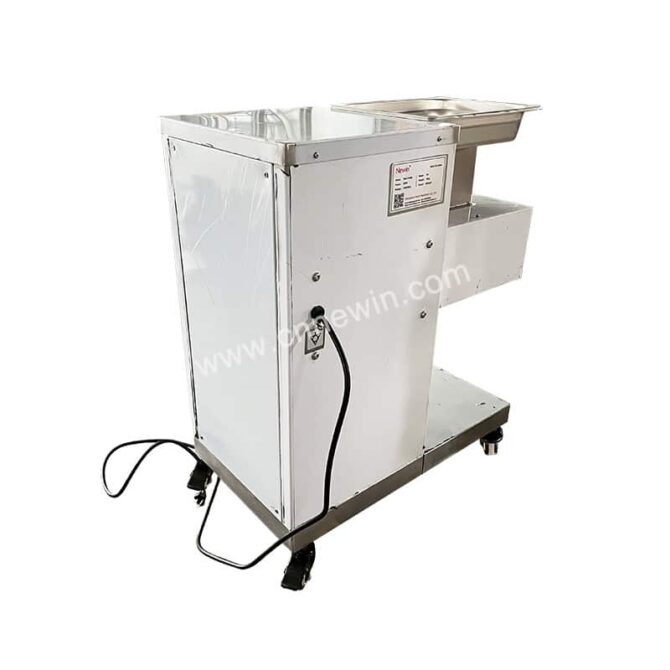

QV meat cutter machine 2

QV Vertical Meat Cutting Machine (Upgraded Version)

Stainless Steel Material

Upgraded Version

Wholesale and Retail Please Send Request Quote
WhatsApp Request Quote
SKU: QV Category: Meat Cutter Tag: Meat Cutter
Product Category
  • Blender
  • Bone Saw Machine
  • Bowl Chopper
  • Chocolate Melting Machine
  • Donut Machine
  • Dough Mixers
  • Frozen Meat Grinder
  • Frozen Meat Planing Machine
  • Ice Process Machine
  • Meat Cutter
  • Meat Cutter Accessories
  • Meat Dicing Machine
  • Meat Grinder
  • Meat Mixer
  • Meat Slicers
  • Orange Juice Machine
  • Rolled Ice Cream Machine
  • Sausage Stuffer
  • Smoke House
  • Sugar Cane Juicer
  • Vacuum Tumbler Machine
  • Vegetable Cutter
  • Vegetable Washing Machine
  • Waffle Maker
Stone WhatsappWhatsapp
Stone WhatsappMessenger
Product Tags
Bone saw cutting machine Bone saw machine Bowl Chopper Bowl Cutter Donut Machine High-end Meat Cutter Ice Cream Machine Ice Cream Machine Roll Meat Cutter Meat Cutting Machine Meat Grinder Meat Slicers Sugar Cane
CE Certificate

Description

Vertical Meat Cutting Machine

Brief Introduction:

An electric meat cutter machine can cut fresh and cooked meat into slices and strips. If you need to cut different thick meat, just install the corresponding cutter. The cutter gap is customizable. The easy-to-use operation, convenient washing, and dismounting are time and labor-saving. Apply to Large-scale restaurants, catering chains, the meat processing industry, schools, and factory canteens.

Vertical Meat Slice Cutting Machine QV 5
Vertical Meat Slice Cutting Machine QV 6

Structure Features:

  1. Blades are made of special steel products, with a hardness of 52, durable in use.
  2. Cutter is adopted an external hanging design. The revolving speed of the rotating part is changed for the second time by a leather belt and motorcycle chain.
  3. Inside the machine exists a safety switch. When the cutter exposure outside, it locks automatically to ensure safety.
  4. At the bottom exist wheels, moving flexibly and used conveniently.

Technical Parameters for Vertical Meat Cutting Machine:

QV meat cutter machine size
meat cutter machine qv
NameElectric Vertical Electric Meat strip cutter machine
TypeQV
Voltage380V/220V/110V
Power750W/550W
Weight70KG
Dimension680*380*770MM
Cutting thickness2.5mm-30mm
Output800kg/hour
Feed port length180mm
Cutting thickness2.5-30mm
Vertical Meat Slice Cutting Machine QV 3
Vertical Meat Slice Cutting Machine QV

Key Features

1. Stainless Steel Material

Our meat slicer machine adopts the durable stainless steel material for aesthetic appearance, anti-corrosion, and rust resistance. Stands up for a longer working period.

2. Powerful Performance

The 750-watt premium motor provides a high rotating speed of blades and a large cutting capacity of 550kg/1100lbs per hour, greatly improving the efficiency of meat slicing.

3. High Safety

The feeding port is heightened to prevent your hands from being cut. Red emergency stop switch for safer usage, thus safety risks are reduced for your security.

4. Detachable Blades

The stainless steel blade is designed in an external hanging style which is removable for convenient washing. Also easy to install. The blade distance is 3 mm.

5. Easy To Move

Four caster wheels on the bottom, allow this slicer machine to move quickly and smoothly. With the brake function, it can be stopped at any time.

6. Wide Application

This product can be efficient to cut beef, pork, lamb, and other meat into pieces. Suitable for small catering industry and meat processing business, kindergarten and small refectory, etc.

Additional information

Weight 78 kg
Dimensions 68 × 38 × 77 cm
Voltage

110V/60Hz, 220V/50Hz

Blade Size

2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm
