Commercial Sausage Filler & Stuffer Selection: Specs, Capacity & Maintenance

Filling meat emulsion into casings requires specific pressure control, hopper capacity, and cylinder materials. Operating conditions determine whether manual, electric, or combined grinding-stuffing units fit the production floor.

Equipment Types & Drive Systems

Different drive mechanisms suit specific batch sizes and daily output requirements:

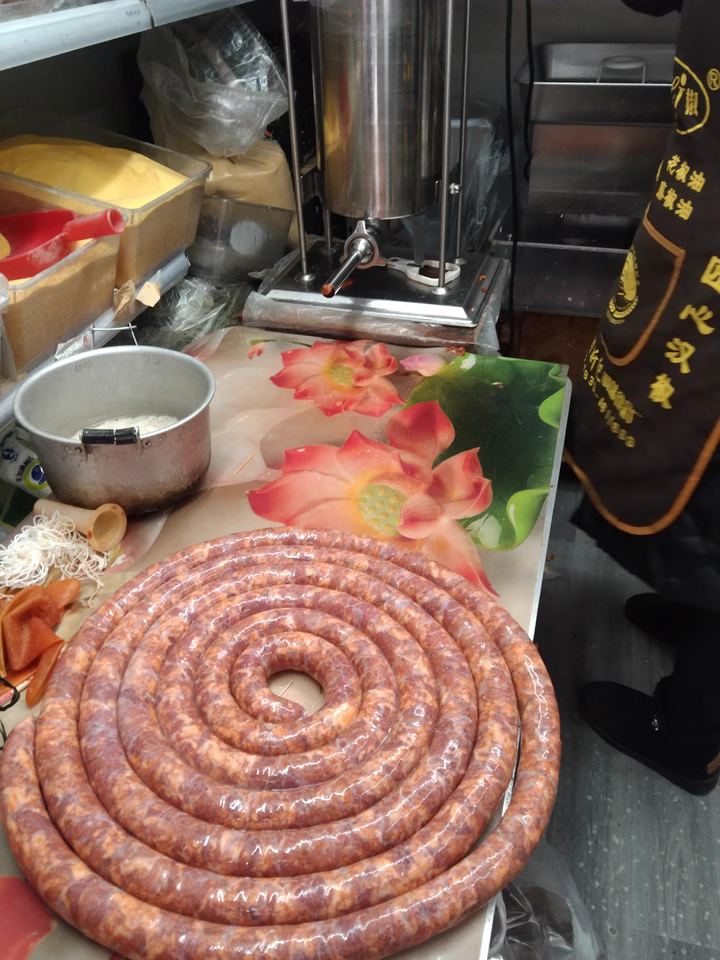

• Manual Vertical Stuffers: Hand-crank operated, 3L to 15L cylinder volume. Suitable for small butcher shops producing under 50kg per batch[cite: 6].
• Electric Hydraulic Fillers: Piston-driven by 0.75kW to 2.2kW motor, 15L to 50L capacity. Knee-pedal control leaves operator hands free for casing handling (380V 3-phase standard, 220V optional)[cite: 6].
• Grinder-Stuffer Combos: Integrated worm gear pushes raw meat through grinding plates before casing fill, reducing footprint in tight kitchen spaces[cite: 6].

Check seal rings daily.

• Continuous Vacuum Stuffers: Industrial units linked with automatic linkers, throughput over 1000kg/h (MOQ: 1 unit, packed in export wooden crates).

Capacity, Material & Technical Specs

Matching equipment parameters with kitchen volume prevents motor overheating and casing burst:

• Cylinder Material: SUS304 stainless steel resists corrosion from brine and spices (wall thickness ≥ 1.5mm).
• Stuffing Nozzles: Standard set includes 16mm, 22mm, 32mm, and 38mm stainless tubes for sheep, hog, or collagen casings.
• Pressure Adjustment: Hydraulic units need variable speed valves, preventing pressure spikes during filling.

Power off before washdown.

Daily Sanitation & Maintenance Steps

Rinsing removes residual fat and prevents microbial growth in stuffing tubes and piston seals:

1. Disassembly & Flush: Disconnect power, detach nozzle, cylinder, and piston gasket. Flush all contact parts with 60°C warm water and neutral detergent. 60°C water washdown dissolves lard without cooking meat proteins onto stainless surfaces.
2. Seal Ring Care: Inspect O-rings for cracks weekly, apply food-grade silicone grease to piston shaft every 50 operating hours.
3. Gearbox Inspection: Check hydraulic oil level monthly, replace oil after 1000 operating hours.

Compact kitchen spaces demand vertical cylinder designs to save counter footprint under 0.4 m². Sanitation rules apply to all unit capacities[cite: 6].
