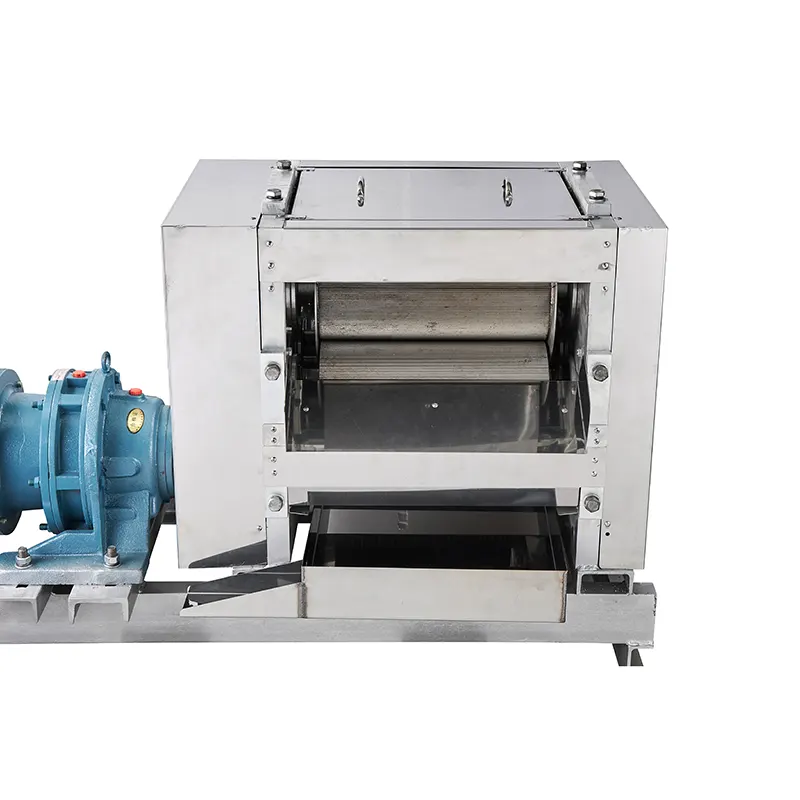

The Newin SJ01T is a 1T/h industrial sugar cane juicer designed for commercial sugar cane juice processing. It uses a three-roller pressing system with SS304 stainless steel rollers and a 2.2kW gear reducing motor.
With a rated processing capacity of 1,000 kg/h, the SJ01T is suitable for beverage businesses, juice processing operations and other commercial food-processing applications that require a dedicated sugar cane juice extraction machine. The machine supports forward and reverse operation and includes overload protection for normal operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SJ01T |
| Machine Type | Industrial Sugar Cane Juicer |
| Processing Capacity | 1,000 kg/h (1T/h) |
| Power | 2.2 kW |
| Voltage | 220V / 380V |
| Frequency | 50Hz |
| Roller Quantity | 3 pcs |
| Roller Material | SS304 Stainless Steel |
| Motor Type | Gear Reducing Motor |
| Forward / Reverse | Yes |
| Overload Protection | Yes |
| Machine Dimensions | 820 × 400 × 600mm |
| Net Weight | 163kg |
Three-Roller Sugar Cane Pressing System
The SJ01T uses three stainless steel rollers to press prepared sugar cane and separate the juice from the fibrous material. The three-roller configuration provides a dedicated pressing system for commercial sugar cane juice production.
The rollers are made from SS304 stainless steel, making the pressing components suitable for regular food-processing applications and routine cleaning.
2.2kW Gear Reducing Motor
The machine is equipped with a 2.2kW gear reducing motor. The gear reduction system provides the drive required for the three-roller pressing mechanism.
The motor configuration is designed for the machine’s rated 1T/h processing capacity. Actual processing results can vary depending on the condition, size and preparation of the sugar cane and the operating method.
1T/h Processing Capacity
The SJ01T has a rated processing capacity of 1,000 kg/h, or approximately 1 ton of sugar cane per hour. This capacity makes it suitable for commercial operations that need more processing volume than a small countertop sugar cane juicer can provide.
Actual throughput depends on the sugar cane being processed, feeding conditions and operating practices. The rated capacity should therefore be used as a reference when planning equipment requirements.
Forward and Reverse Operation
The SJ01T supports both forward and reverse operation. Forward rotation is used for normal sugar cane pressing, while reverse rotation can be used when the operator needs to clear material from the roller area.
The forward and reverse function provides an additional operating option when processing sugar cane and maintaining the pressing mechanism.
Overload Protection
The SJ01T is equipped with an overload protection function. This feature is intended to help protect the machine when the operating load becomes excessive.
Operators should still prepare the sugar cane properly and follow the supplied operating instructions rather than relying on overload protection as a substitute for correct operation.
SS304 Stainless Steel Rollers
The three pressing rollers are made from SS304 stainless steel. The stainless steel roller construction is suitable for food-processing environments and allows the pressing area to be cleaned as part of routine machine maintenance.
Sugar cane residue should be removed from the rollers and surrounding areas after processing to help keep the machine clean and ready for the next operation.
Suitable Applications
The SJ01T is designed for commercial sugar cane juice processing and can be considered for applications where sugar cane needs to be pressed into juice as part of a food or beverage operation.
- Commercial sugar cane juice production
- Juice bars and beverage businesses
- Beverage processing operations
- Food and beverage processing facilities
- Agricultural cooperatives and sugar cane processing
- Commercial sugar cane juice preparation
Choosing the SJ01T for Your Application
The SJ01T is suitable for buyers looking for a dedicated industrial sugar cane juicer with a rated capacity of 1T/h. When selecting the machine, consider the required processing volume, available electrical supply and the space available for installation.
The machine requires a 220V or 380V, 50Hz power supply and has a machine size of 820 × 400 × 600mm. Buyers should confirm the required voltage and installation conditions before ordering.
For operations with different processing requirements, Newin also offers other sugar cane juicer models with different capacity levels. Comparing the rated capacity and motor power of the available models can help determine which machine is more appropriate for the intended application.
Installation and Power Supply
The SJ01T is available with 220V or 380V power supply at 50Hz. The machine should be installed on a stable surface with sufficient space around the pressing and feeding areas for normal operation and cleaning.
Before installation, confirm that the electrical supply matches the machine specification and that the installation is carried out according to the supplied instructions.
🛠️ Maintenance Tips
- Clean the rollers and remove sugar cane residue after each use.
- Clean and dry food-contact areas after washing.
- Check the rollers and pressing components regularly for wear or damage.
- Inspect electrical connections and operating controls before use.
- Keep the machine surface and surrounding working area clean.
- Follow the supplied operating and maintenance instructions for the gear reducing motor and other components.
Frequently Asked Questions
Q: What is the processing capacity of the SJ01T sugar cane juicer?
A: The SJ01T has a rated processing capacity of 1,000 kg/h, or 1T/h. Actual throughput may vary depending on the sugar cane condition, preparation and operating method.
Q: How many rollers does the SJ01T have?
A: The SJ01T uses three pressing rollers. The rollers are made from SS304 stainless steel.
Q: What motor does the SJ01T use?
A: The SJ01T uses a 2.2kW gear reducing motor.
Q: What voltage does the SJ01T require?
A: The listed power supply options are 220V and 380V at 50Hz. The required voltage should be confirmed before ordering.
Q: Does the SJ01T support forward and reverse operation?
A: Yes. The SJ01T supports forward and reverse operation. Reverse rotation can be used when clearing material from the roller area when necessary.
Q: Does the SJ01T have overload protection?
A: Yes. The SJ01T includes an overload protection function to help protect the machine when the operating load becomes excessive.
Q: What are the dimensions and weight of the SJ01T?
A: The SJ01T measures 820 × 400 × 600mm and has a net weight of 163kg.
Q: How should the SJ01T be cleaned and maintained?
A: Switch off the machine before cleaning, remove sugar cane residue from the rollers and surrounding areas, and clean and dry the relevant food-contact components. Follow the supplied maintenance instructions for the gear reducing motor and other machine components.
Related Industrial Sugar Cane Juicers

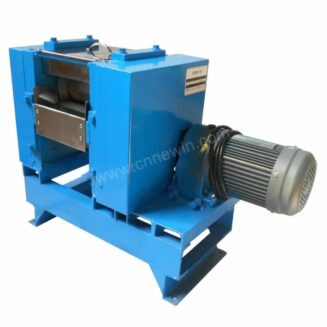

The SJ01T is the 1T/h model in Newin’s industrial sugar cane juicer range. If you need a higher processing capacity, compare it with the SJ02T 2T/h Industrial Sugar Cane Juicer.
You can also view the full range of industrial sugar cane juicers to compare different capacity options for commercial juice processing.
Request a Quote
If you are looking for a 1T/h industrial sugar cane juicer, contact Newin with your required voltage, processing requirements and intended application. We can provide product information and a quotation based on your requirements.
