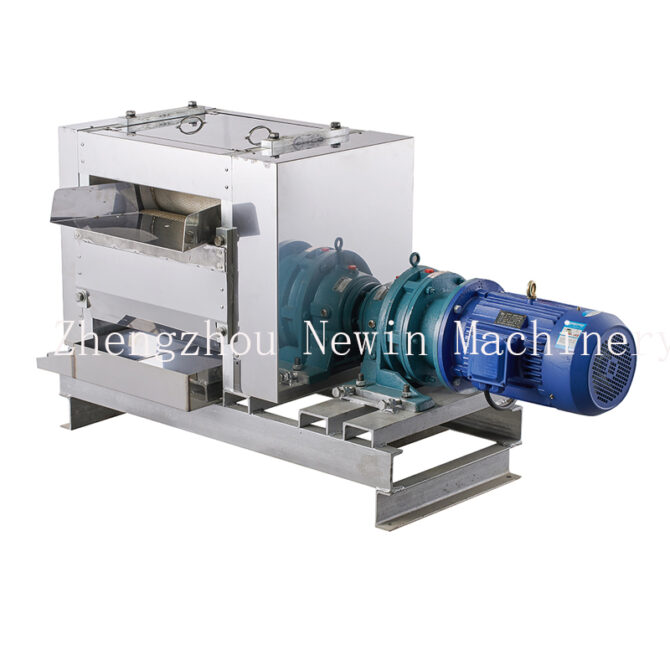

Sugar Cane Juicer Machine Large Output 2T/H
The Newin SJ02T is an industrial sugar cane juicer and press crusher with a processing capacity of up to 2 T/H (2,000 kg/h). It uses a three-roller pressing system with SS304 stainless steel rollers and a 3.7 kW gear reducing motor for commercial sugarcane juice processing.
The machine is designed for higher-volume sugarcane processing applications where a larger-capacity juicer is required. Forward and reverse operation and overload protection are included to support practical operation during production.
With a machine size of 900 × 600 × 650 mm and a net weight of 235 kg, the SJ02T is a floor-standing industrial machine that can be integrated into commercial juice production and agricultural processing facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SJ02T |
| Processing Capacity | 2 T/H (2,000 kg/h) |
| Power | 3.7 kW |
| Voltage | 220V / 380V, 50Hz |
| Roller Quantity | 3 pcs |
| Roller Material | SS304 Stainless Steel |
| Motor Type | Gear Reducing Motor (Copper Core) |
| Forward & Reverse | Yes |
| Overload Protection | Yes |
| Machine Dimensions | 900 × 600 × 650 mm |
| Net Weight | 235 kg |

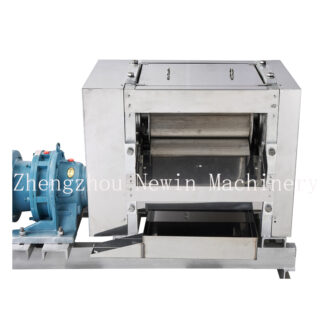

Three-Roller Sugarcane Pressing System
The SJ02T uses three stainless steel rollers to process sugarcane progressively through splitting, pulling, and pressing. This three-roller configuration is the main working structure of the machine and is designed for commercial sugarcane juice extraction.
The rollers are made from SS304 stainless steel, providing a suitable material for areas that come into contact with sugarcane and juice during normal operation.
3.7 kW Gear Reducing Motor
The SJ02T is equipped with a 3.7 kW gear reducing motor with a copper-core motor configuration. The gear reduction system provides the drive required for the three-roller pressing assembly during sugarcane processing.
The motor and roller assembly are designed as an integrated drive system for the machine’s industrial processing capacity.
Forward and Reverse Operation
The SJ02T includes forward and reverse operation. Reverse rotation can be used when the operator needs to clear material from the roller area during operation.
The machine also includes overload protection to help protect the drive system when an overload condition occurs.
SS304 Stainless Steel Rollers
All three pressing rollers are specified as SS304 stainless steel. The three rollers work progressively as the sugarcane passes through the pressing assembly.
For commercial juice production, the roller material is an important consideration because the rollers are directly involved in the sugarcane processing and juice extraction process.
Processing Capacity
The rated processing capacity of the SJ02T is 2 T/H, equivalent to approximately 2,000 kg of sugarcane per hour under the stated machine specification.
Actual processing results can vary according to the condition, size, variety, and feeding method of the sugarcane. For production planning, buyers should use the rated capacity as the machine specification rather than treating it as a guaranteed output under every operating condition.
Suitable Applications
The SJ02T is intended for commercial and industrial sugarcane processing applications where a higher processing capacity is required. Typical applications include:
- Commercial sugarcane juice production
- Large juice bars and beverage operations
- Agricultural processing facilities
- Sugarcane processing workshops
- Commercial beverage production
- Food and drink processing facilities
The machine can be considered when a small countertop sugarcane juicer is not sufficient for the required processing volume.
Choosing the SJ02T for Your Application
The SJ02T is a suitable option for buyers looking for an industrial sugarcane juicer with a rated capacity of 2,000 kg/h. Its three-roller structure, 3.7 kW gear reducing motor, and 235 kg machine weight place it in a different application range from smaller commercial sugarcane juicers.
When selecting a sugarcane juicer, buyers should consider the required processing capacity, available power supply, machine dimensions, roller configuration, and the expected operating environment.
If your required capacity is lower than 2 T/H, a smaller model may be more appropriate. If your production requirement is significantly higher, a larger-capacity sugarcane juicer should be considered instead.
Installation and Power Supply
The SJ02T is specified for 220V / 380V, 50Hz power supply and has a rated power of 3.7 kW. Buyers should confirm the available electrical supply at the installation location before ordering.
The machine measures 900 × 600 × 650 mm and weighs 235 kg net. Sufficient working space should be provided around the machine for sugarcane feeding, juice collection, cleaning, inspection, and routine maintenance.
Because the SJ02T is a 235 kg industrial machine, the installation area should also provide a suitable and stable floor for the equipment.
🛠️ Maintenance Tips
- Clean sugarcane residue from the roller area after production.
- Clean the rollers and juice-contact areas regularly to prevent sugar residue from accumulating.
- Check the rollers and transmission components periodically for abnormal wear.
- Check mounting bolts and other accessible fasteners during routine maintenance.
- Inspect the gear reducing motor and related components according to the supplied maintenance instructions.
- Follow the manufacturer’s instructions for lubrication, inspection, and component replacement.
Frequently Asked Technical Questions
Q: What is the capacity of the SJ02T sugarcane juicer?
A: The SJ02T has a rated processing capacity of 2 T/H, or approximately 2,000 kg/h.
Q: How many rollers does the SJ02T use?
A: The SJ02T uses three pressing rollers made from SS304 stainless steel.
Q: What motor does the SJ02T use?
A: The SJ02T uses a 3.7 kW gear reducing motor with a copper-core motor configuration.
Q: Does the SJ02T have forward and reverse operation?
A: Yes. The SJ02T supports forward and reverse operation and is also equipped with overload protection.
Q: What voltage does the SJ02T require?
A: The listed specification is 220V / 380V, 50Hz. Buyers should confirm the required electrical configuration before ordering.
Q: What are the dimensions and weight of the SJ02T?
A: The SJ02T measures 900 × 600 × 650 mm and has a net weight of 235 kg.
Request a Quote
If you are sourcing an industrial sugarcane juicer with a processing capacity of around 2,000 kg/h, contact Newin with your required power supply, application, and destination market. We can confirm the suitable configuration and provide current quotation and shipping information.
