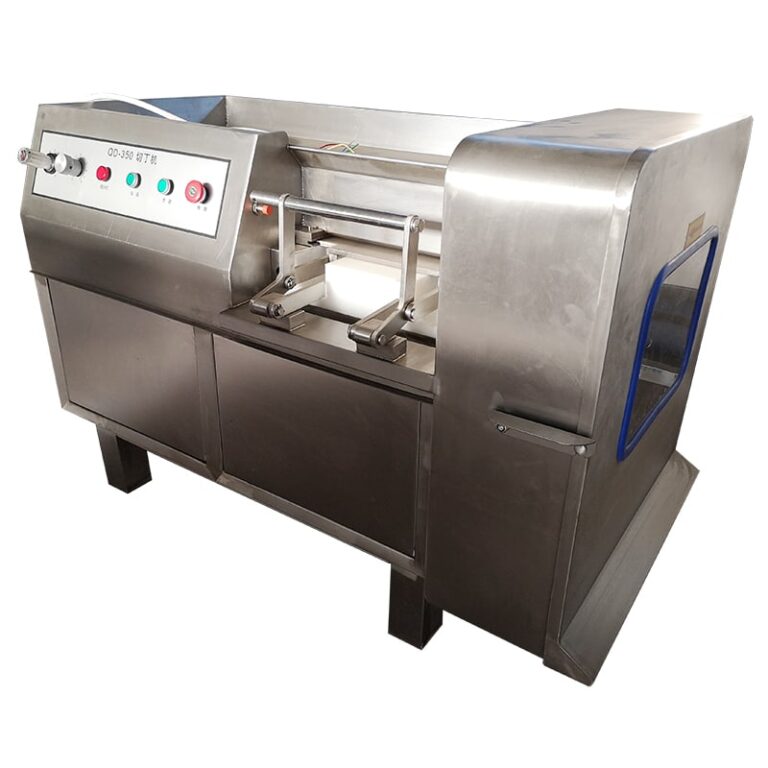

Newin QD-350 Meat Dicing Machine is designed for processing fresh meat and suitable frozen meat into diced pieces for commercial food processing. The current product specification states that it can handle frozen meat at about -3 to -4°C, with an output of 500–600 kg/h. For the wider equipment range, see our commercial meat dicing machines.
The QD-350 uses automatic pre-compression to help keep the cut product more consistent. Its main motor is rated at 1.5 kW and the oil pump motor is also 1.5 kW. The machine is built from SUS304 stainless steel, and the cutting configuration can be changed for different sizes. A fixed cutting blade can also be removed when a different width is required.
The current specification lists cutting sizes of 5, 6, 7, 8, 9, 11, 13, 16, 20 and 27 mm, with customizable configurations. The cutting groove is 85 × 85 × 400 mm and the maximum filling material length is 350 mm. These dimensions should be checked against the size of the meat blocks to be processed before ordering. For a higher-capacity option, compare the QD-550 meat dicing machine or request a quote with your required meat type, cutting size and capacity.
Newin lists wholesale and retail orders on the product page and provides a direct quotation request. Product configuration should be confirmed according to the customer’s material, required cutting size and local electrical requirements.
Technical Specifications
| Parameter | QD-350 | Buyer Note |
|---|---|---|
| Main Motor Power | 1.5 kW | Useful when matching the machine to the available power supply. |
| Oil Pump Motor Power | 1.5 kW | Relevant when reviewing the complete drive configuration. |
| Output | 500–600 kg/h | Actual output depends on product and operating conditions. |
| Material | SUS304 | Relevant for food-contact areas and routine cleaning. |
| Cutting Size | 5/6/7/8/9/11/13/16/20/27 mm, customizable | The knife configuration should match the finished product size required. |
| Cutting Groove Size | 85 × 85 × 400 mm | Check against the size of the meat block being fed. |
| Maximum Filling Material Length | 350 mm | Important when checking whether the raw material fits the feed system. |
| Total Weight | 500 kg | Relevant for installation and handling. |
| Dimensions | 1480 × 800 × 980 mm | Check available installation space before ordering. |
| Frozen Meat Condition | About -3 to -4°C, according to current page | Confirm the actual product condition and temperature before order. |
Why This Model May Fit Your Application
- Fresh and suitable frozen meat: The current product page describes processing for fresh meat and frozen meat at about -3 to -4°C.
- 500–600 kg/h output: A mid-range capacity for buyers whose production needs are below the QD-550 range.
- Multiple cutting sizes: The listed knife configurations cover several common sizes from 5 mm to 27 mm.
Ideal Applications
For diced meat preparation where a repeatable cutting size is required.
For businesses that need to reduce repetitive manual dicing work.
For applications that require one machine for the meat conditions supported by the model.
FAQ
What type of meat can the QD-350 process?
The QD-350 product page describes the machine for fresh meat and frozen meat at about -3 to -4°C; the exact raw material size and condition should be confirmed before ordering.
What cutting sizes are available on the QD-350?
The QD-350 lists 5, 6, 7, 8, 9, 11, 13, 16, 20 and 27 mm cutting configurations, with customizable options stated on the product page.
What is the output of the QD-350?
The stated output is 500–600 kg/h. Actual production depends on the material and operating conditions.
What is the maximum filling material length?
The current specification lists a maximum filling material length of 350 mm.
Can the QD-350 process frozen meat?
Yes. The current product page states that it can process frozen meat at about -3 to -4°C, but the actual product condition should be confirmed for the intended application.
