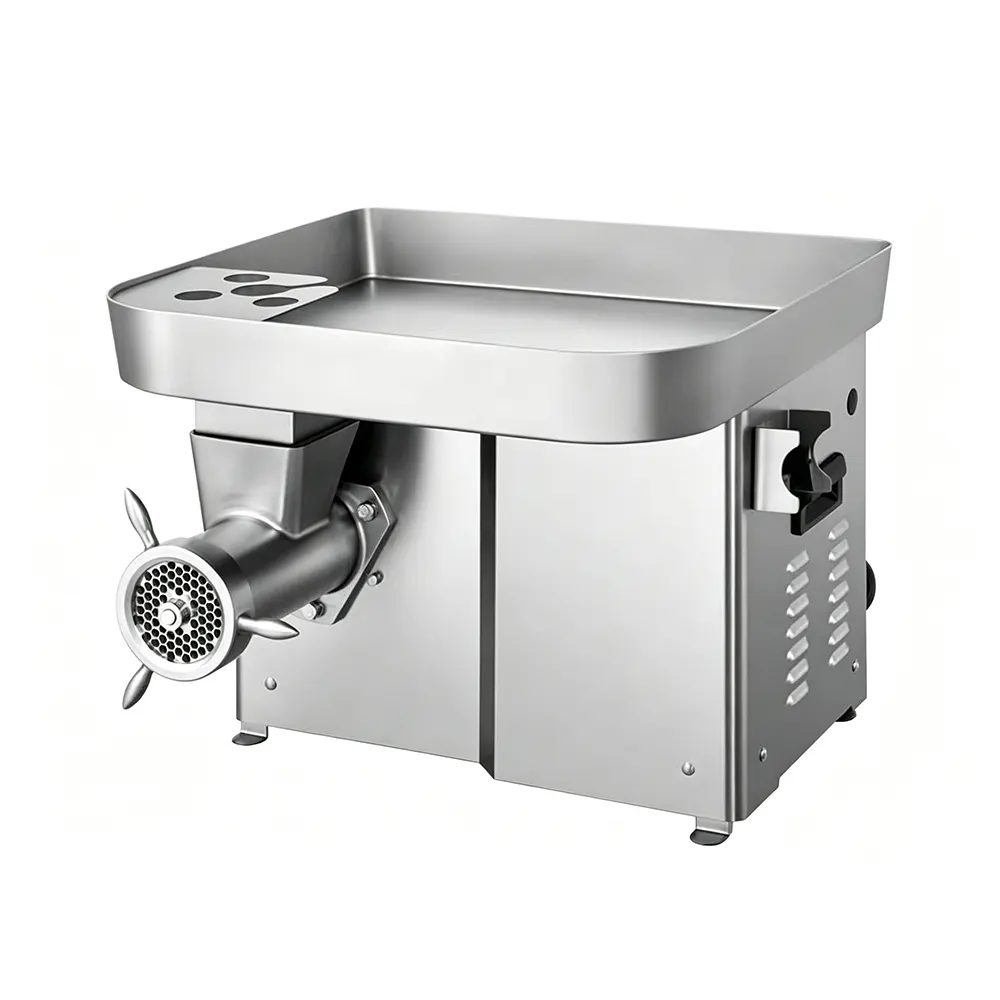

Technical Specifications Comparison
| Specification | DM-12 | DM-22 | DM-32 |
| Power Supply | 220-240V / 50Hz | 220-240V / 380V / 50Hz | 220-240V / 380V / 50Hz |
| Motor Power | 550 W | 750 W / 1100 W | 1500 W |
| Processing Capacity | 150 kg/h | 250 kg/h | 350 kg/h |
| Standard Hole Plates | 6 mm / 8 mm | 6 mm / 8 mm | 6 mm / 8 mm |
| Net Weight | 25 kg | 31 kg | 54 kg |
| Gross Weight | 27 kg | 33 kg | 72 kg |
| Machine Dimensions (L×W×H) | 429 × 382 × 405 mm | 479 × 420 × 416 mm | 570 × 585 × 460 mm |
| Package Dimensions (L×W×H) | 485 × 425 × 445 mm | 545 × 445 × 455 mm | 630 × 630 × 615 mm |
Engineering Features & Sanitary Compliance
- Shear-Cutting Processing: Engine-driven high-precision blade shearing cuts meat clean rather than crushing or extruding, maintaining cell structure, natural juices, and texture integrity.
- Hygiene & Material Integrity: Manufactured with seamless 304 stainless steel housing and precision-cast grinding components, meeting international commercial sanitation standards for easy washdowns.
- Double-Sealed Drive Shaft: Features dual oil seals on the main transmission spindle, eliminating cross-contamination risk between motor lubricants and food zones while preventing liquid ingress.
- Continuous Thermal Duty: Integrated forced air-cooling motor architecture prevents thermal shutdown during long-shift processing cycles.
- Operational Safety Systems: Fitted with an integrated stainless steel feed pan, splash-protected power switch cover, and automated circuit overload protection.
Commercial Applications
- Butcher shops & specialized meat retail stores
- Supermarket processing department counters
- Commercial restaurant kitchens & hotel catering centers
- Small-to-medium industrial food processing plants
Commercial Terms & OEM Options
- Minimum Order Quantity (MOQ): 1 Units (Sample units available for technical evaluation).
- OEM & ODM Support: Custom electrical configurations (110V/60Hz, 220V/60Hz, 3-Phase 380V), private label laser etching, custom plate hole dimensions, and custom export packaging.
