The Newin DM-32F Floor-Type Commercial Meat Grinder is a stainless steel meat grinding machine designed for butcher shops, supermarkets, restaurants, commercial kitchens and other food processing businesses. With a rated processing capacity of 500 kg/h and a 1500W motor, the DM-32F is suited to commercial meat grinding applications that require a higher-capacity floor-type machine.
The DM-32F features a stainless steel machine body and meat grinding components, a blade-cutting grinding system, removable grinding parts, a double-seal transmission design and an air-cooled motor. Its floor-type structure gives the machine a working height of 927mm, distinguishing it from the shorter desktop configuration of the DM-32W.
The machine uses a 380V / 50Hz power supply and has a net weight of 70kg. For businesses comparing different production capacities and machine configurations, Newin offers a range of commercial meat grinder machines.

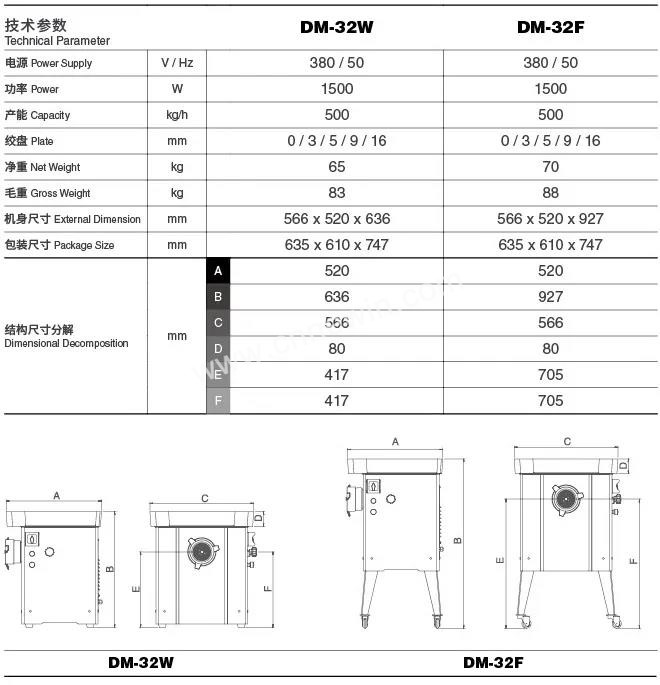

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DM-32F |
| Machine Type | Floor-Type Commercial Meat Grinder |
| Power Supply | 380V / 50Hz |
| Power | 1500W |
| Processing Capacity | 500 kg/h |
| Grinding Plate | 0 / 3 / 5 / 9 / 16mm |
| Net Weight | 70kg |
| Gross Weight | 90kg |
| Machine Dimension | 566 × 520 × 927mm |
| Package Size | 635 × 585 × 805mm |

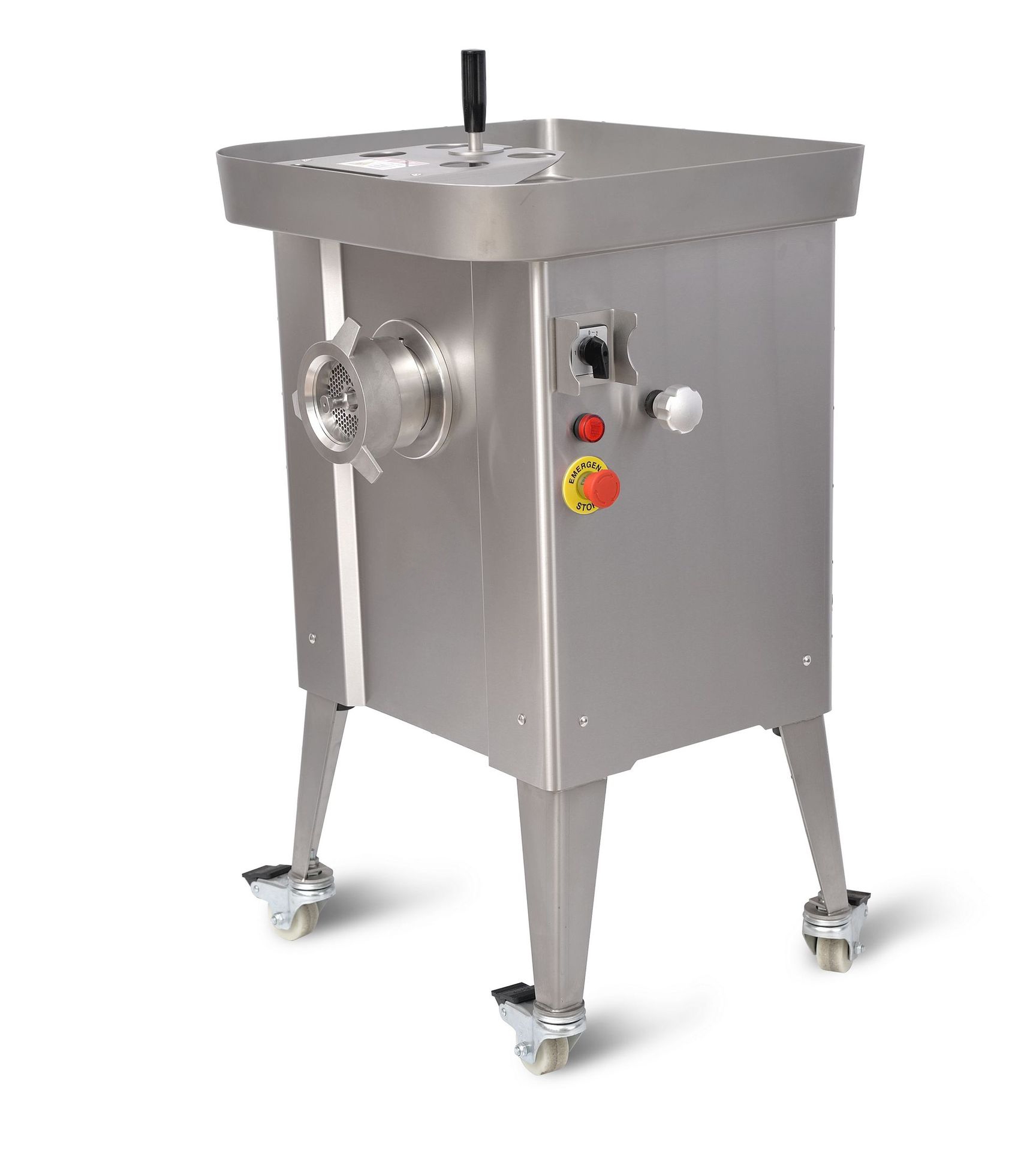

Floor-Type Commercial Meat Grinder
The DM-32F uses a floor-type machine structure with dimensions of 566 × 520 × 927mm. This configuration provides a taller machine body than the desktop-style DM-32W, making the two models suitable for different installation arrangements.
With a rated capacity of 500 kg/h, the DM-32F is intended for commercial meat preparation where a floor-type grinder is preferred.

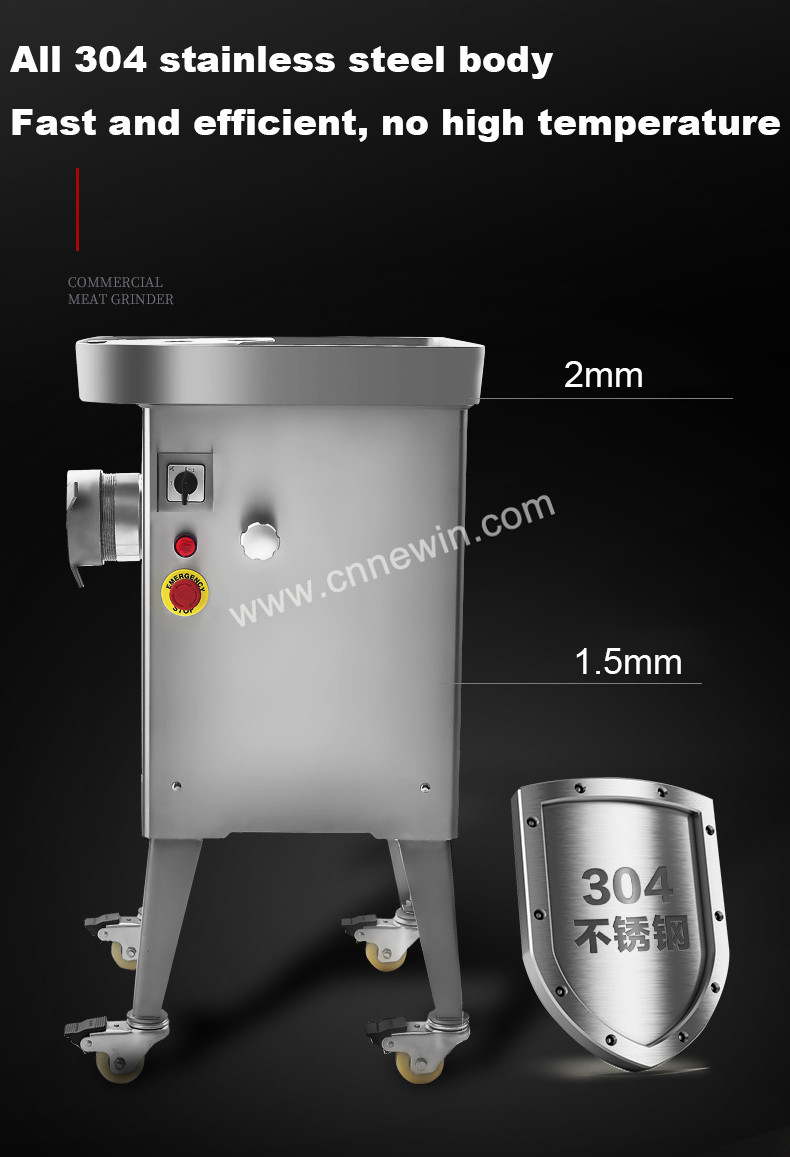

304 Stainless Steel Construction
The machine body and main meat grinding components are made of 304 stainless steel. The stainless steel construction provides a practical surface for commercial food processing and routine cleaning.
The seamless stainless steel machine body is designed to make cleaning easier after meat grinding. The main grinding components are also made from stainless steel according to the product specifications.
Blade-Cutting Grinding System
The DM-32F uses a blade-cutting grinding system rather than relying only on extrusion. During operation, the knife and grinding plate work together to cut the meat as it passes through the grinding assembly.
This structure is suitable for regular meat grinding applications. Meat should be properly prepared and bones should be removed before processing.

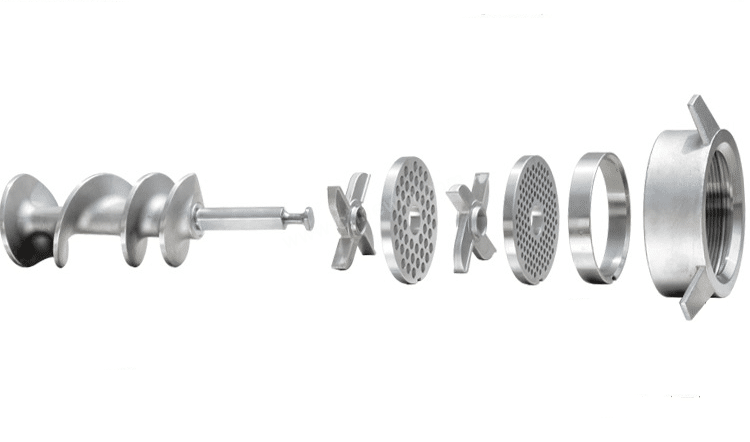

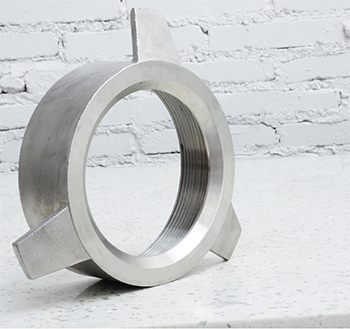

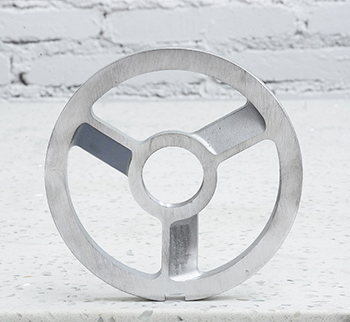

Removable Grinding Components
The grinding components are designed to be removed for cleaning and routine inspection. This allows operators to access the knife, grinding plate and other meat-contact parts after operation.
Removing the grinding assembly also makes it easier to clean meat residue from the working components before the next production cycle.

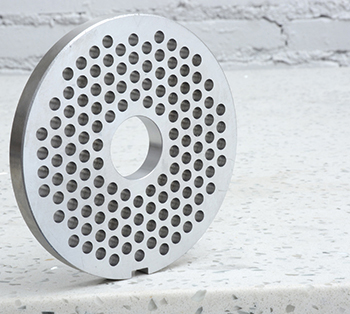

Grinding Plate Options
The DM-32F is specified with grinding plate options of 0mm, 3mm, 5mm, 9mm and 16mm. Different plate options can be selected according to the required grinding configuration.
The appropriate grinding plate should be selected according to the desired meat texture and processing requirements. Confirm the required plate configuration when ordering.
Double-Seal Transmission Design
The DM-32F uses a double-seal design in the meat grinding spindle transmission area. This design helps separate the mechanical transmission section from the working area of the machine.
The double-seal construction forms part of the machine’s transmission system and provides separation between the drive components and the meat-processing section during normal operation.
Air-Cooled Motor
The DM-32F is equipped with an air-cooled motor with a rated power of 1500W. The air-cooled configuration is designed for commercial meat grinding work.
The specified electrical supply is 380V / 50Hz. Check the available power supply before installation and confirm the electrical configuration when ordering.
Fresh and Frozen Meat Applications
The DM-32F can be used for common meat grinding applications involving prepared meat such as pork, beef, mutton and fish. Bones should be removed before the meat is processed through the grinder.
The product information also indicates that the machine can be used for frozen meat applications. Actual processing suitability depends on the condition and preparation of the meat and the operating requirements of the application.
Typical applications include:
- Butcher shops and meat retail stores
- Supermarkets and meat counters
- Delicatessens and cooked food stores
- Restaurants and commercial kitchens
- Catering businesses
- Commercial food processing operations
Choosing the DM-32F for Your Application
When selecting a commercial meat grinder, consider the required processing capacity, machine structure, available electrical supply, installation space and the type of meat being processed.
The DM-32F provides a rated capacity of 500 kg/h and uses a 1500W motor with a 380V / 50Hz power supply. Its floor-type structure and 927mm machine height make it different from the desktop configuration of the DM-32W.
If a more compact desktop configuration is preferred, the DM-32W Commercial Meat Grinder provides the same rated 500 kg/h capacity with a shorter machine structure.
For a smaller commercial desktop machine, the DM-22 Commercial Desktop Meat Grinder has a rated processing capacity of 250 kg/h. For higher-capacity industrial processing, the DM-32P Industrial Meat Grinder provides a different machine configuration with a rated capacity of 800–1000 kg/h.
Installation and Power Supply
The DM-32F is specified for 380V / 50Hz power supply. Before installation, check that the available electrical supply matches the machine requirements.
Place the machine on a stable working surface with sufficient clearance for operation, cleaning and removal of the grinding components. Allow enough space around the machine for normal material handling and routine maintenance.
🛠️ Maintenance Tips
- Clean meat residue from the grinding area after each use.
- Clean and dry the grinding components after washing.
- Check the knife and grinding plates regularly and maintain or replace the cutting components when necessary.
- Keep the machine surface and working area clean after operation.
- Follow the supplied operating and maintenance instructions for lubrication and component replacement.
Frequently Asked Questions
Q: What is the capacity of the DM-32F commercial meat grinder?
A: The DM-32F has a rated processing capacity of 500 kg/h. Actual output may vary depending on the meat type, preparation, grinding plate and operating conditions.
Q: What motor power does the DM-32F use?
A: The DM-32F uses a 1500W motor.
Q: What power supply does the DM-32F require?
A: The specified power supply for the DM-32F is 380V / 50Hz. Buyers should confirm the electrical requirements before installation.
Q: What grinding plate sizes are available for the DM-32F?
A: The specified grinding plate options are 0mm, 3mm, 5mm, 9mm and 16mm.
Q: Is the DM-32F made from 304 stainless steel?
A: Yes. The product specifications identify 304 stainless steel for the machine body and main meat grinding components.
Q: Can the grinding components be removed for cleaning?
A: Yes. The grinding components are designed to be removable, allowing the knife, grinding plate and related meat-contact parts to be cleaned and inspected.
Q: Does the DM-32F use a double-seal transmission design?
A: Yes. The DM-32F uses a double-seal design in the meat grinding spindle transmission area.
Q: Is the DM-32F equipped with an air-cooled motor?
A: Yes. The DM-32F uses an air-cooled 1500W motor.
Q: Is the DM-32F a floor-type meat grinder?
A: Yes. The DM-32F uses a floor-type configuration with machine dimensions of 566 × 520 × 927mm.
Q: Can the DM-32F be used for frozen meat?
A: The product information indicates that the DM-32F can also be used for frozen meat. The suitability of a particular frozen meat application should be confirmed according to the meat condition and processing requirements.
Q: What are the dimensions and weight of the DM-32F?
A: The machine dimensions are 566 × 520 × 927mm. The net weight is 70kg and the gross weight is 90kg. The package size is 635 × 585 × 805mm.
Related Commercial Meat Grinders
Newin offers commercial meat grinders with different capacities and machine configurations. Comparing processing capacity, machine structure, power requirements and grinding plate options can help buyers select a suitable model.
- Commercial Meat Grinder Machines – Explore the full range of Newin commercial meat grinding equipment.
- DM-32W Commercial Meat Grinder – A 500 kg/h commercial model with a shorter desktop-style machine structure.
- DM-22 Commercial Desktop Meat Grinder – A smaller desktop model with a rated processing capacity of 250 kg/h.
- DM-32P Industrial Meat Grinder – A higher-capacity industrial model rated at 800–1000 kg/h.
Request a Quote
If you are looking for a 500 kg/h floor-type commercial meat grinder with a 1500W motor, 380V / 50Hz power supply and stainless steel grinding components, contact Newin for product specifications, grinding plate options and purchasing information.
