All stainless steel meat grinders for sale

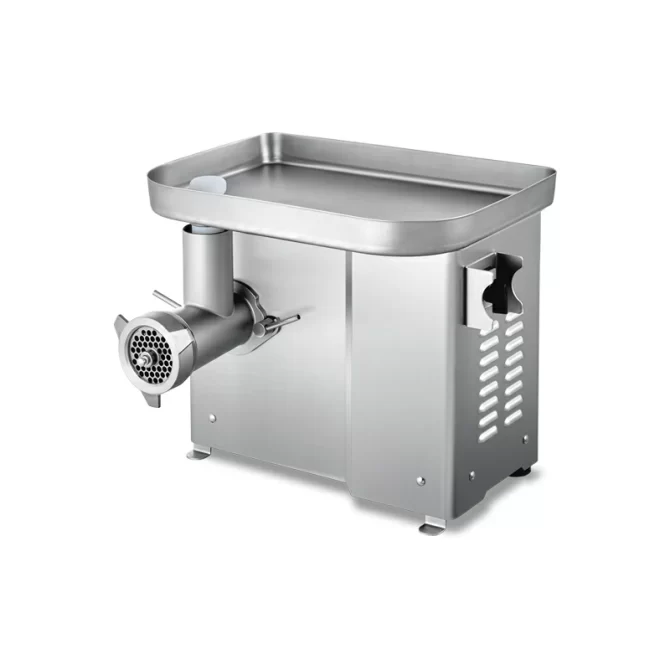

The Newin DM-22 Commercial Desktop Meat Grinder is a stainless steel meat grinding machine designed for butcher shops, supermarkets, restaurants, commercial kitchens and other food processing businesses. With a rated processing capacity of 250 kg/h and power options of 750W or 1.1kW, the DM-22 is suitable for businesses that need more grinding capacity than a compact desktop model while still working with a relatively compact machine.
The DM-22 features a stainless steel machine body and meat grinding components, a removable grinding assembly, an air-cooled motor and a double-seal gearbox design. Its desktop structure allows the machine to be installed on a suitable working surface while providing a practical solution for regular fresh meat grinding.
For other production requirements, Newin also provides a range of commercial meat grinder machines with different capacities and machine configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DM-22 |
| Machine Type | Commercial Desktop Meat Grinder |
| Power Supply | 220–240V / 380V / 50Hz |
| Power | 750W / 1.1kW |
| Processing Capacity | 250 kg/h |
| Grinding Plate | 6 mm / 8 mm |
| Net Weight | 31 kg |
| Gross Weight | 33 kg |
| Machine Dimension | 479 × 420 × 416 mm |
| Package Dimension | 545 × 445 × 455 mm |
304 Stainless Steel Construction
The DM-22 uses 304 stainless steel for the machine body and main meat grinding components. The seamless stainless steel body provides a smooth working surface that is easier to clean after meat processing.
The stainless steel construction is suitable for commercial food preparation environments where the machine is regularly exposed to meat residue and requires routine cleaning after operation.
Blade-Cutting Grinding System
The DM-22 uses a blade-cutting grinding system rather than relying only on extrusion. During operation, the knife and grinding plate work together to process the meat through the grinding assembly.
This structure is designed for regular fresh meat grinding applications and can be used for common meat preparation work in butcher shops, restaurants, supermarkets and commercial kitchens.
Removable Grinding Components
The grinding components of the DM-22 are designed to be removable, allowing operators to access the meat-contact parts for cleaning and routine inspection.
Removing the grinding components after operation makes it easier to clean meat residue from the knife, grinding plate and related parts. Regular cleaning helps maintain hygienic working conditions and keeps the grinding assembly ready for the next production cycle.
Air-Cooled Motor for Commercial Operation
The DM-22 uses an air-cooled motor and is designed for continuous commercial operation under normal working conditions. The cooling system helps support stable motor operation during regular meat grinding work.
The available power configuration is 750W / 1.1kW. The appropriate electrical configuration should be confirmed according to the machine specification and the installation requirements before ordering.
Double-Seal Gearbox Design
The motor gearbox uses a double-seal design on the transmission system. This structure helps separate the transmission area from the meat-processing section during normal operation.
The double-seal design is part of the machine’s overall construction and is intended to provide a more reliable separation between the mechanical drive components and the food-processing area.
Suitable Applications
The DM-22 commercial desktop meat grinder is suitable for a range of commercial food processing applications, including:
- Butcher shops and meat retail stores
- Supermarket meat counters
- Delicatessens and cooked food stores
- Restaurants and commercial kitchens
- Catering businesses
- Small food processing facilities
With a rated capacity of 250 kg/h, the DM-22 is suitable for businesses that need regular meat grinding capacity while keeping the machine in a desktop format.
Choosing the Right Commercial Meat Grinder
When selecting a commercial meat grinder, buyers should consider the required processing capacity, available installation space, electrical supply and daily workload.
The DM-22 provides a rated capacity of 250 kg/h and is designed as a commercial desktop model. It can be considered when a business needs more grinding capacity than the smaller DM-12 commercial desktop meat grinder.
For applications requiring a higher production capacity, Newin also provides larger meat grinder models. The DM-32 commercial meat grinder is part of the same product series and provides a higher rated processing capacity.
🛠️ Maintenance Tips
- Clean meat residue from the grinding area after each use.
- Clean and dry the grinding components after washing.
- Check the knife and grinding plates regularly and maintain or replace the cutting components when necessary.
- Keep the machine surface and working area clean after operation.
- Follow the supplied operating and maintenance instructions for lubrication and component replacement.
Frequently Asked Questions
Q: What is the capacity of the DM-22 commercial desktop meat grinder?
A: The DM-22 has a rated processing capacity of 250 kg/h. Actual output may vary depending on the meat type, condition, grinding plate and operating conditions.
Q: What power options are available for the DM-22?
A: The specified power options for the DM-22 are 750W and 1.1kW. The appropriate configuration should be confirmed according to the required electrical supply before ordering.
Q: What power supply does the DM-22 require?
A: The specified power supply options are 220–240V / 50Hz and 380V / 50Hz. Buyers should confirm the electrical configuration required for their installation before ordering.
Q: What grinding plate sizes are available for the DM-22?
A: The specified grinding plate options for the DM-22 are 6mm and 8mm.
Q: Is the DM-22 made from 304 stainless steel?
A: Yes. The product specification identifies 304 stainless steel for the machine body and main meat grinding components.
Q: Can the grinding components be removed for cleaning?
A: Yes. The grinding components are removable, allowing the knife, grinding plate and related meat-contact parts to be cleaned and inspected after operation.
Q: Does the DM-22 use a double-seal gearbox design?
A: Yes. The DM-22 uses a double-seal design in the motor gearbox transmission system to help separate the transmission area from the meat-processing section.
Q: Is the DM-22 suitable for continuous operation?
A: The product specification identifies the air-cooled motor as suitable for continuous operation. Actual operating conditions should follow the manufacturer’s operating instructions.
Q: What are the dimensions and weight of the DM-22?
A: The machine dimensions are 479 × 420 × 416mm. The net weight is 31kg and the gross weight is 33kg. The package dimensions are 545 × 445 × 455mm.
Related Commercial Meat Grinders
Newin offers different meat grinder models for different production requirements. Buyers can compare processing capacity, machine structure and installation requirements when selecting a suitable model.
- Commercial Meat Grinder Machines– Main category for Newin commercial meat grinding equipment.
- DM-12 Commercial Desktop Meat Grinder – A smaller desktop model with a rated processing capacity of 150 kg/h.
- DM-32 Commercial Meat Grinder – A higher-capacity model in the same DM series.
- DM-32P Industrial Meat Grinder – A larger floor-type meat grinder with a higher processing capacity.
Request a Quote
If you are looking for a commercial desktop meat grinder with a rated capacity of 250 kg/h, contact Newin for product specifications, electrical configuration and purchasing support.
