Stainless steel Meat Mincers DM-32W 800KG/H

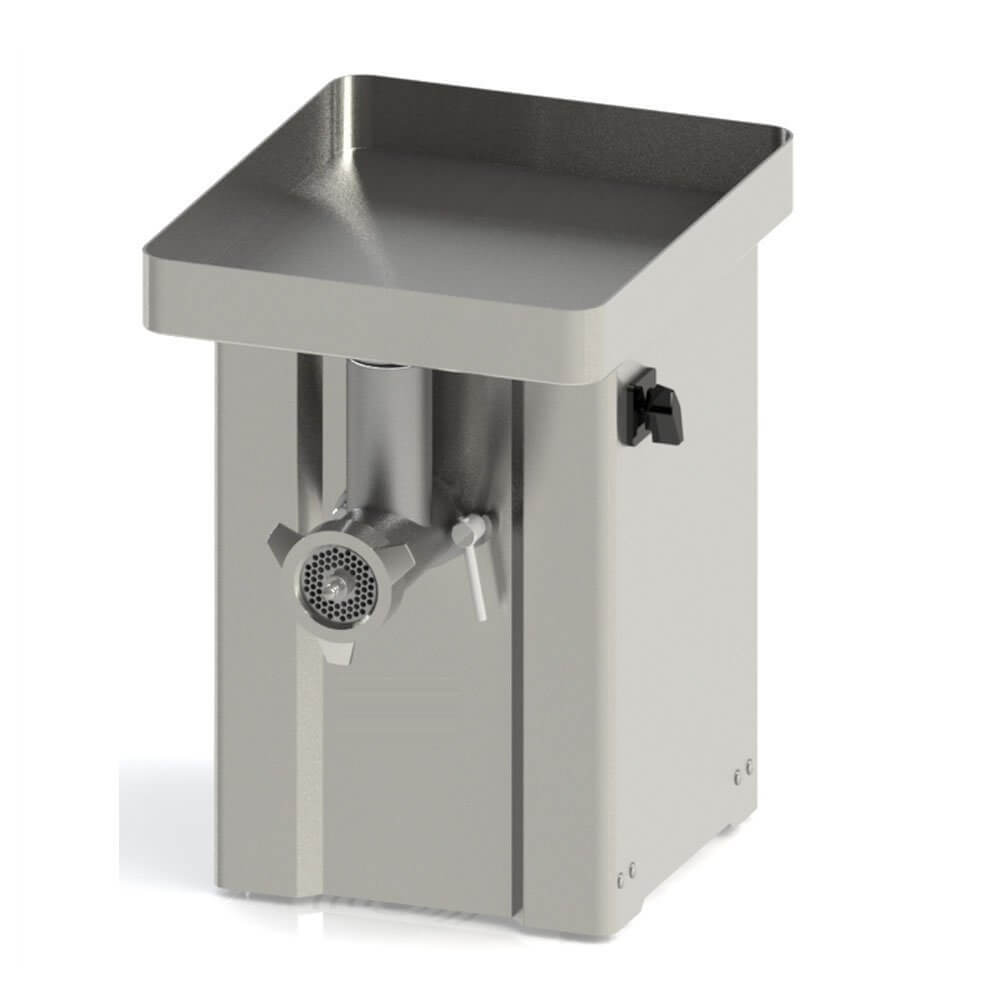

The Newin DM-32W Commercial Meat Grinder is a stainless steel meat grinding machine designed for butcher shops, supermarkets, restaurants, commercial kitchens and other food processing businesses. With a rated processing capacity of 500 kg/h and a 1500W motor, it is suitable for commercial operations that require a higher grinding capacity than smaller desktop meat grinders.
The DM-32W features a stainless steel machine body and meat grinding components, a blade-cutting grinding system, removable grinding parts, a double-seal transmission design and an air-cooled motor. The machine uses a 380V / 50Hz power supply and has a net weight of 65 kg.
For businesses comparing different production capacities, Newin offers a range of commercial meat grinder machines for different processing requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DM-32W |
| Machine Type | Commercial Meat Grinder |
| Power Supply | 380V / 50Hz |
| Power | 1500W |
| Processing Capacity | 500 kg/h |
| Grinding Plate | 0 / 3 / 5 / 9 / 16mm |
| Net Weight | 65kg |
| Gross Weight | 83kg |
| Machine Dimension | 566 × 520 × 636mm |
| Package Size | 635 × 585 × 805mm |
304 Stainless Steel Construction
The DM-32W uses 304 stainless steel for the machine body and main meat grinding components. The stainless steel construction provides a practical surface for commercial food processing and routine cleaning.
The machine body uses a seamless stainless steel design, making it easier to clean after meat grinding. The main meat-contact components are also made from stainless steel according to the product specifications.
Blade-Cutting Grinding System
The DM-32W uses a blade-cutting grinding system rather than relying only on extrusion. During operation, the knife and grinding plate work together to cut the meat as it passes through the grinding assembly.
This design is suitable for regular fresh meat grinding applications. Meat should be properly prepared and any bones should be removed before processing.
Removable Grinding Components
The grinding components are designed to be removed for cleaning and routine inspection. This allows operators to access the knife, grinding plate and other meat-contact parts after operation.
Removing the grinding assembly also makes it easier to clean meat residue from the working components before the next production cycle.
Grinding Plate Options
The DM-32W is specified with grinding plate options of 0mm, 3mm, 5mm, 9mm and 16mm. Different plate openings can be selected according to the required grinding configuration.
The appropriate grinding plate should be selected according to the desired meat texture and processing requirements. Confirm the required plate configuration when ordering.
Double-Seal Transmission Design
The DM-32W uses a double-seal design in the meat grinding spindle transmission area. The design helps separate the mechanical transmission section from the working area of the machine.
This construction is intended to provide a practical separation between the drive components and the meat-processing section during normal operation.
Air-Cooled Motor
The DM-32W is equipped with an air-cooled motor and is designed for commercial meat grinding work. The air-cooling configuration supports motor operation during normal processing.
The specified motor power is 1500W, with a power supply of 380V / 50Hz. The electrical requirements should be confirmed before installation to ensure compatibility with the available power supply.
Suitable Meat and Applications
The DM-32W can be used for common meat grinding applications involving prepared meat such as pork, beef, mutton and fish. Bones should be removed before the meat is processed through the grinder.
Typical applications include:
- Butcher shops and meat retail stores
- Supermarkets and meat counters
- Delicatessens and cooked food stores
- Restaurants and commercial kitchens
- Catering businesses
- Small and medium-sized food processing operations
Choosing the DM-32W for Your Application
When selecting a commercial meat grinder, consider the required processing capacity, available electrical supply, installation space and the type of meat products being processed.
The DM-32W provides a rated capacity of 500 kg/h and uses a 1500W motor with a 380V / 50Hz power supply. Its 566 × 520 × 636mm machine dimensions make it a larger commercial model within the DM meat grinder range.
For a lower-capacity desktop solution, the DM-12 Commercial Desktop Meat Grinder is rated at 150 kg/h, while the DM-22 provides a 250 kg/h capacity. For higher-capacity industrial processing, the DM-32P Industrial Meat Grinder provides a different machine configuration and a rated capacity of 800–1000 kg/h.
Installation and Power Supply
The DM-32W is specified for 380V / 50Hz power supply. Before installation, check that the available electrical supply matches the machine requirements.
Place the machine on a stable working surface with sufficient clearance for operation, cleaning and removal of the grinding components. Allow enough working space around the machine for normal material handling and maintenance.
🛠️ Maintenance Tips
- Clean meat residue from the grinding area after each use.
- Clean and dry the grinding components after washing.
- Check the knife and grinding plates regularly and maintain or replace the cutting components when necessary.
- Keep the machine surface and working area clean after operation.
- Follow the supplied operating and maintenance instructions for lubrication and component replacement.
Frequently Asked Questions
Q: What is the capacity of the DM-32W commercial meat grinder?
A: The DM-32W has a rated processing capacity of 500 kg/h. Actual output may vary depending on the meat type, preparation, grinding plate and operating conditions.
Q: What motor power does the DM-32W use?
A: The DM-32W is equipped with a 1500W motor.
Q: What power supply does the DM-32W require?
A: The specified power supply for the DM-32W is 380V / 50Hz. Buyers should confirm the electrical requirements before installation.
Q: What grinding plate sizes are available for the DM-32W?
A: The specified grinding plate options are 0mm, 3mm, 5mm, 9mm and 16mm.
Q: Is the DM-32W made from 304 stainless steel?
A: Yes. The product specifications identify 304 stainless steel for the machine body and main meat grinding components.
Q: Can the grinding components be removed for cleaning?
A: Yes. The grinding components are designed to be removable, allowing the knife, grinding plate and related meat-contact parts to be cleaned and inspected.
Q: Does the DM-32W use a double-seal transmission design?
A: Yes. The DM-32W uses a double-seal design in the meat grinding spindle transmission area.
Q: Is the DM-32W equipped with an air-cooled motor?
A: Yes. The DM-32W uses an air-cooled motor with a rated power of 1500W.
Q: What are the dimensions and weight of the DM-32W?
A: The machine dimensions are 566 × 520 × 636mm. The net weight is 65kg and the gross weight is 83kg. The package size is 635 × 585 × 805mm.
Related Commercial Meat Grinders
Newin offers commercial meat grinders with different capacities and machine configurations. Comparing capacity, machine dimensions, power requirements and grinding plate options can help buyers select a suitable model.
- Commercial Meat Grinder Machines – Explore the full range of Newin commercial meat grinding equipment.
- DM-12 Commercial Desktop Meat Grinder – A smaller desktop model with a rated processing capacity of 150 kg/h.
- DM-12 / DM-22 / DM-32 Meat Grinder Series – Compare the different models in the DM meat grinder series.
- DM-32P Industrial Meat Grinder – A higher-capacity industrial model rated at 800–1000 kg/h.
