Small Meat Slicing Machine, meat cutter machine for home use
The Newin QX-250 Compact Meat Slicer is engineered for localized delicatessens, central ghost kitchens, and specialized meat purveyors. Its design prioritizes continuous production within restricted operational footprints. This system employs a single-pass kinematic configuration, processing fresh or tempered proteins into geometrically uniform slices (adjustable 2.5mm to 50mm) or dense shreds. Eliminates secondary processing stages, streamlining workflow. This unit, part of our heavy-duty commercial meat cutter infrastructure, directly addresses structural fiber tearing and product mass loss challenges prevalent in high-volume portion control operations.
Construction consists entirely of passivated, heavy-gauge SUS304 stainless steel. The chassis and integrated cutter housing provide robust isolation for the powertrain from corrosive organic acids and high-pressure sanitization cycles. Mechanical force is delivered by a 0.55 kW continuous-duty induction motor, coupled to a turbine-driven speed reduction gear. This setup maintains constant spindle torque under high-resistance loads. The active cutting element utilizes premium-milled 4Cr13 martensitic alloy steel, vacuum-hardened to a precise HRC 52 rating. This ensures exceptional edge retention under sustained mechanical stress. A cantilevered, external hanging cassette assembly permits rapid tooling hot-swaps between slicing grids. Positions the QX-250 as a versatile asset among commercial electric meat slicers available globally.
The QX-250 delivers an industrial-scale throughput: up to 250 kg/hour. It occupies a compact physical footprint of 455 × 320 × 430 mm. This allows seamless countertop integration on standard commercial stainless steel prep tables, requiring no structural modifications. The structural layout withstands rigid back-to-back operational shifts across diverse applications. Includes hotpot meat profiling, stir-fry strip portioning, and bulk catering pre-preparation. For international procurement teams evaluating non-standard technical parameters, our factory offers comprehensive custom meat slicer solutions. This includes regional electrical line frequency adaptations (50Hz/60Hz), tailored multi-blade cassette spacing, and specific export voltage configurations (110V/220V/380V).
Note: The optimized cutting mechanism minimizes temperature rise in the meat during high-speed processing, ensuring product texture and extended shelf life.
Technical Specifications & Kinematic Value Mapping
| Engineering Parameter | QX-250 Technical Specification | Operational Impact (Why it Matters) |
|---|---|---|
| Kinematic Throughput | 250 kg/hour[cite: 3] | Maintains continuous production line flow during peak commercial prep windows, processing a full shift’s raw material allocation in under 60 minutes[cite: 3]. |
| Dimensional Slicing Envelope | 2.5 mm – 50 mm (Modular Cassette Adjustments)[cite: 3] | Enables high-precision thickness switching from ultra-thin hotpot profiles to thick bacon slabs on a single chassis, eliminating extra machinery acquisition costs[cite: 3]. |
| Powertrain Motor Specification | 0.55 kW (Pure Copper Windings)[cite: 3] | Delivers optimal magnetic flux density and high initial starting torque while keeping operational thermal heat loss significantly lower than universal brush configurations[cite: 3]. |
| Grid Phase Adaptability | 110V / 220V / 380V (Configurable)[cite: 3] | Ensures immediate plug-and-play synchronization with global commercial grids without requiring costly external voltage transformer infrastructure[cite: 3]. |
| Structural Material Grade | Milled SAE 304 (SUS304) Stainless Steel[cite: 3] | Meets rigorous global sanitation codes (FDA and EC 1935/2004); resists chemical washdown passivation cycles and chloride-induced pitting corrosion[cite: 3]. |
| Metallurgic Hardness Rating | 4Cr13 Martensitic Steel, HRC 52[cite: 3] | Industrial-grade edge retention that minimizes edge roll during heavy friction cycles, extending continuous operation cycles before sharpening intervention is required[cite: 3]. |
| Physical Dimensions | 455 × 320 × 430 mm[cite: 3] | Ultra-compact 0.15 m² base footprint engineered to maximize spatial efficiency within space-restricted restaurant preparation line configurations[cite: 3]. |
| Net Structural Mass | 33 kg[cite: 3] | Substantial cast inertia dampens mechanical vibration harmonics during high-speed cutting cycles, securing workspace stability without permanent anchor bolt installation[cite: 3]. |
🔍 Quantified Performance: Newin QX-250 vs. Standard Market Alternatives
- Kinematic Material Yield Control: Unlike standard light-duty appliances that suffer from spindle flexing under load, the rigid turbine transmission of the QX-250 maintains true blade alignment. This minimizes cell-crushing fluid loss (weeping), maximizing meat mass weight retention and raw material yield.
- Tooling Lifespan Economics: Upgrading the blade structure from standard 2Cr13 steel to vacuum-hardened 4Cr13 (HRC 52) extends active cutting cycles between regrinding intervals, substantially reducing yearly component depletion expenses[cite: 3].
- Integrated Dual-Function Versatility: The unique drop-in cassette array handles both clean linear slicing and longitudinal shredding workflows on a single chassis[cite: 3]. This multi-role capability reduces capital equipment expenditure (CapEx) for small-to-medium kitchen footprints.
📦 B2B Order Information
- ✅ MOQ: 1 unit (sample order available for testing)
- ✅ Bulk Pricing: Volume discounts on 5+ units (5–9 units: 5% off; 10+ units: 10% off; 20+ units: custom pricing)
- ✅ Lead Time: 3–5 days for sample orders; 10–15 days for bulk orders (1–50 units) after deposit confirmed
- ✅ Shipping: Worldwide express (DHL/FedEx/UPS 3–7 days) for samples; sea freight LCL/FCL for bulk shipments
- ✅ Customization: Voltage (110V/220V/380V 50/60Hz), logo printing, custom packaging, blade set selection available
- ✅ Payment: PayPal, Bank Transfer (T/T), Visa, MasterCard, UnionPay, Western Union, LC for large orders
Detailed Overview of Core Components
⚡ Motor Assembly — 0.55 kW Copper-Windings
🛡️ Safety Interlock System — Double Protection
Ideal Applications
Precision-thin lamb and beef slices (2.5–5mm) for instant cooking — the signature cut that defines a premium hotpot experience.
Uniform sliced roast beef, ham, and salami for retail counters and sandwich preparation — consistent portions reduce waste by up to 15%.
High-volume pork and chicken diced for stir-fry dishes — 250kg/hour throughput handles cafeteria lunch rushes efficiently.
Versatile slice-and-shred switching for multi-course events — prep smoked meats, sausages, and cold cuts on-demand.
Daily: Wipe blade and feed tray with damp cloth after each use. Release blade tension knob fully before storing to prevent spring fatigue.
Weekly: Apply food-safe mineral oil to the blade shaft bearing and slide rails. Inspect safety cover sensor for debris buildup.
Monthly: Check motor ventilation slots for dust accumulation and vacuum clean. Verify emergency stop button returns freely.
Blade Sharpening: We recommend professional sharpening after 50,000 cuts or when you notice increased tearing rather than clean slicing. Use only Newin-approved sharpening angles (15° bevel).
Storage: Cover unit with provided dust cover when not in use for extended periods. Store in a dry environment (humidity below 60%) to prevent bearing oxidation.
Frequently Asked Technical Questions
Q: What mechanical parameters govern the thickness changes of the Newin QX-250?
A: The Newin QX-250 establishes precise slicing profiles (2.5mm to 50mm) via full removal and replacement of the interchangeable blade shaft cassette assembly[cite: 3]. Spacer collar configurations dictate fixed thickness parameters for clean, drift-free output.
Q: How does the Newin QX-250 cutting grid perform when handling raw proteins containing internal ice formations?
A: The Newin QX-250 is engineered to slice fresh proteins or tempered meats chilled down to −5°C[cite: 3]. Deep-frozen meat blocks (typically stored at −18°C) present excessive mechanical resistance that can cause microscopic blade chipping; they must be tempered before processing[cite: 3].
Q: What structural safety protections are integrated into the Newin QX-250 architecture to satisfy workplace hazard compliance?
A: The Newin QX-250 implements dual safety interlock circuits[cite: 3]. An ambient magnetic sensor array kills power instantly if the feed hood is detached, and an auxiliary mechanical emergency stop button executes hard braking to halt rotation within 0.5 seconds[cite: 3].
Q: What is the expected duty cycle lifespan before sharpening is required on the Newin QX-250 alloy blades?
A: Under continuous commercial production parameters, the vacuum-hardened 4Cr13 blades of the Newin QX-250 maintain razor alignment through up to 50,000 shearing cycles[cite: 3]. For typical 8-hour shift operations, this translates to an average 6-month maintenance window before mechanical regrinding is required[cite: 3].

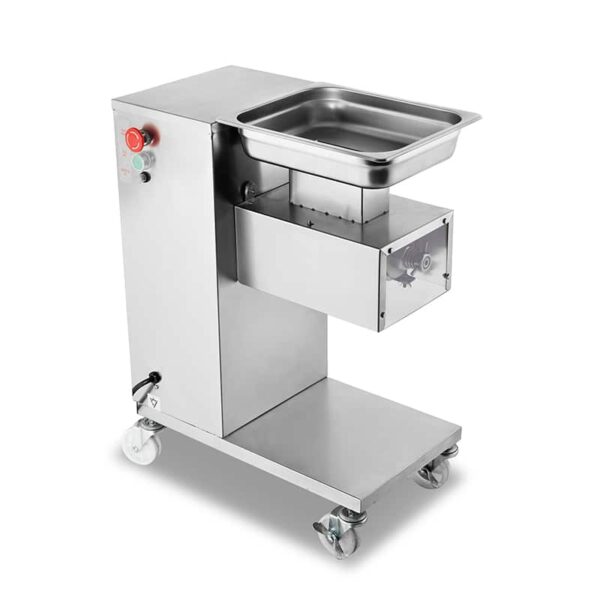

Newin QE-500 Vertical Commercial Meat Cutter Machine (500kg/h)
The main material of this machine is food-grade 304 stainless steel.
White swivel wheel upgraded to black swivel wheel
For inexpensive 201 material equipment, please consult your account manager.
Accessories knife set: Meat Cutting Machine Blade QE QH QSJ-A
Specifications
- Name: Small Meat Slicing Machine
- Model: QX-250
- Voltage: 220V/110V
- Power: 0.55 kW
- Weight: 33KG
- Specification: 455*320*430MM
- Cutting thickness: 2.5-50mm
- Output: 250kg/hour
Package Content
- 1 x Machine
- 1 x Knife set
- 1 x Manual
