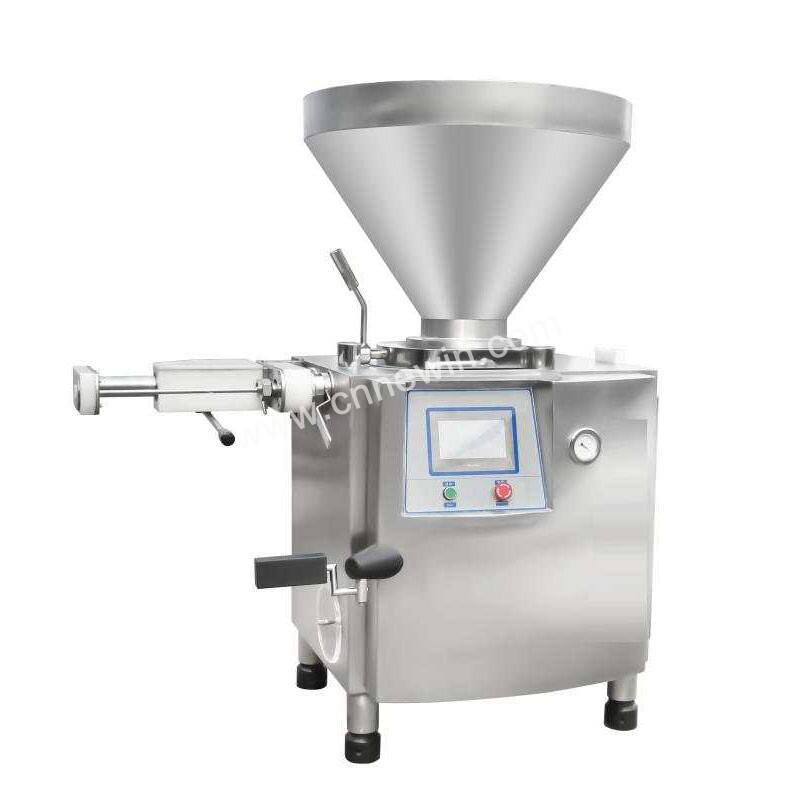

Vacuum Sausage Machine Introduction:
This machine is filled by a blade pump, servo motor drive, human-machine interface, microcomputer-controlled automatic vacuum quantitative sausage filling machine, equipped with an automatic kink mechanism. Can be filled with meat, sausage, ham, and other intestinal clothing products, but is also applicable to natural intestinal clothing, fibrous intestinal clothing, and other parts of the kink. Can also be used to fill a variety of bottle-boxed products. This machine with automatic compensation device, a quantitative accuracy of up to 1.5 grams (meat-like meat, 400 grams below), The transfer of material softened, and filling speed, kink speed, kink ring number, the weight of each serving can be adjusted. This machine is filled in a vacuum state, the hopper can be reversed, and cleaning is more convenient. This machine selects high-quality stainless steel material manufacturers, key components are specially treated, wear-resistant, control parts are imported components, the appearance of the advanced surface treatment process, beautiful and generous, compact structure, convenient operation, easy maintenance, with safety protection, is the ideal equipment for meat processing. This model uses excellent stainless steel material, is bright and flat, reasonable design, easy to clean, in line with HACCP health standards.
Vacuum Sausage Machine Technical Parameters:
| Model | NWZG32 | NWZG35 | NWZG65 |
| Filling Capacity | 3200kg/h | 3500kg/h | 6500kg/h |
| Power | 5.5KW | 9.5KW | 11KW |
| Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ |
| Machine size | 800*800*1520mm | 1950*1300*1800mm | 1950*1300*1800mm |
| Weight | 500kg | 1080kg | 1260kg |
| Hopper volume | 150L | 260L | 260L |
Vacuum Sausage Stuffer Features
- The whole machine is made of high-quality stainless steel, and the key parts adopt special treatment, have a long service life, and are easy to clean.
- Adopt advanced surface technics, compact structure, elegant appearance, easy and simple to operate, and convenient to maintain.
- Equipped with a safety device, ensuring the safety of the operator.
- The electric sausage filler adopts a vane pump for filling, driven by a servomotor, operated with a human-computer interface and PLC control.
- The pump body, impeller, and blade all adopt special heat treatment, are highly polished, durable, ensure quantitative accuracy, and are also convenient to clean.
- The vacuum sausage filler machine is equipped with an automatic kink system and the kink speed is adjustable.
Can be combined with auxiliary equipment to build a production line
