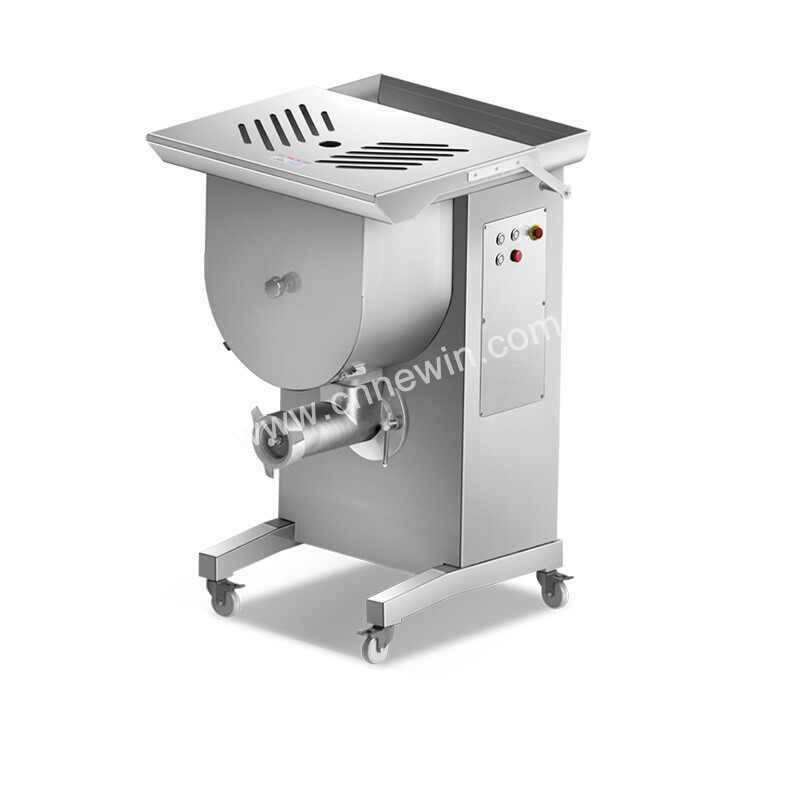

Commercial Meat Mixer Grinder DMX-80

Commercial meat mixer grinder DMX-80

Product Structure

1. AISI304 stainless steel body， special surface sandblasting treatment.
2. Two independent IPX5 air-cooled motors, one is responsible for mincing meat and the other is responsible for stirring.
3. Oil bath gear reducer, special process helical gear.
4. Safety protection when opening the cover.
5. The minced meat and mixing parts can be easily disassembled without tools.
6. Lengthenauger and pusher screw.

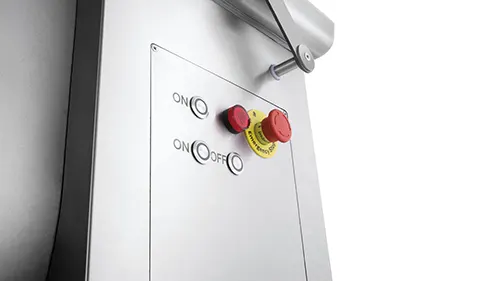

7. Meat Mixer Grinder IP54 control panel.

Applicable Place

Butcher shop, Hotel & Supermarket …

Technical Parameter

Model	DMX-32A
Capacity	800-1000kg
Power	3000W
Voltage	380V 50HZ Triple-phase
Plate	3/5/9/16mm
Outlet Diameter	98mm
Mixer Power	1100W
Barrel Capacity	42 Lilter /30kg
Machine size	798*626*1305mm
Packing size	872*700*1480mm
Net weight	138kg
Gross weight	200kg
